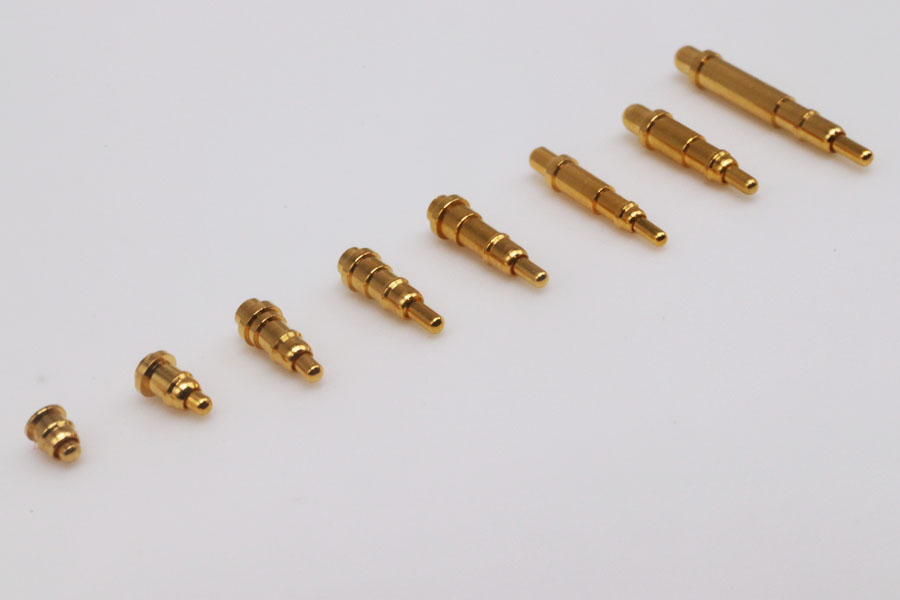

Product image

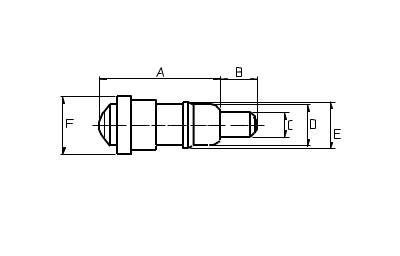

| Technology | N/A | A | 7.8 |
|---|---|---|---|
| B | 1.7 | C | 0.8 |
| D | 1.3 | E | 1.4 |
| F | 1.9 | Working Height | - |
| Working Range(Reference) | 8.0〜9.0 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 0.4N MIN〜1.2N MAX | Rated Current | 2 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 100mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | Floating | CAP | W/O |
| Packaging | Bulk | Packaging Quantity | 5,000pcs |
Note

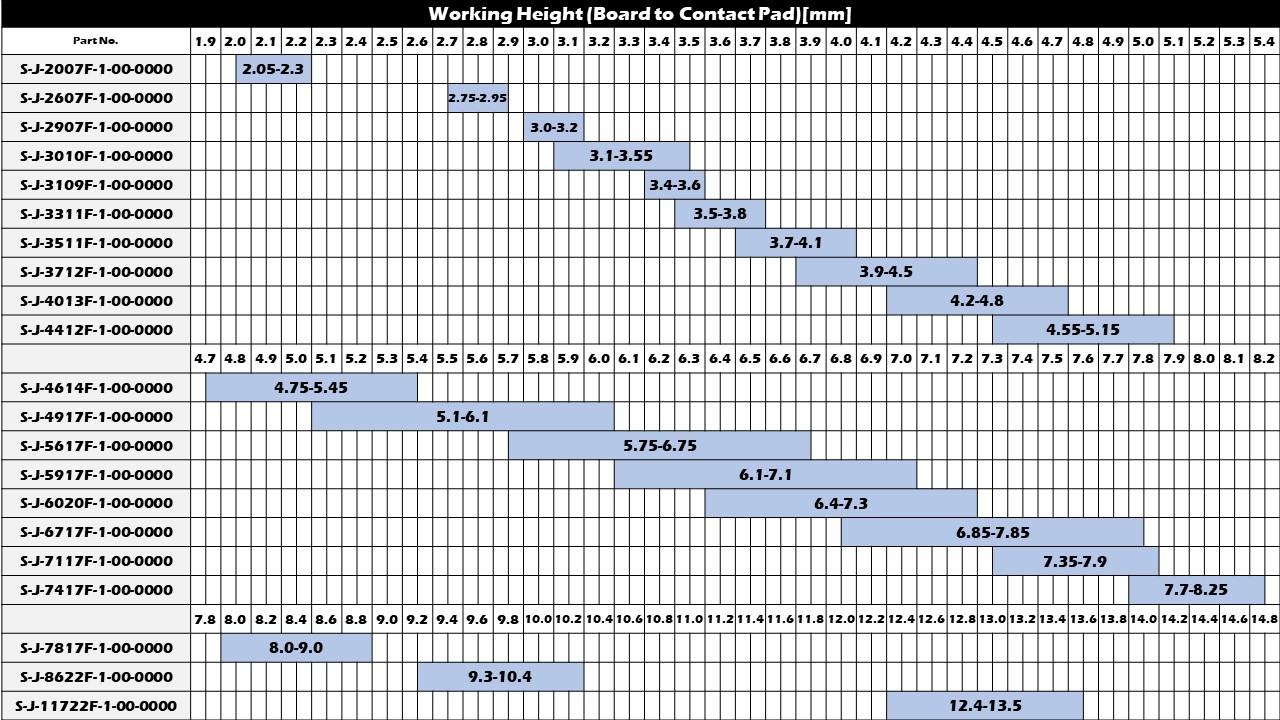

Working Range(Reference)
