S-J-7117F-1-00-0000

Pogo Pin Connectors
Floating Connector

RoHS

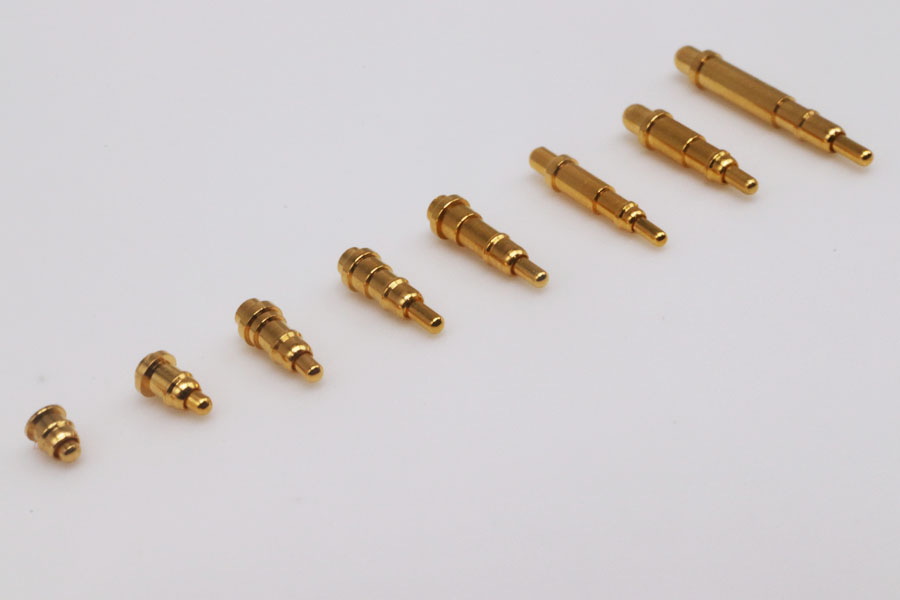

S-J-7117F-1-00-0000Product image

Floating Conncetor_1Pin_Floating Series

S-J-7117F-1-00-0000

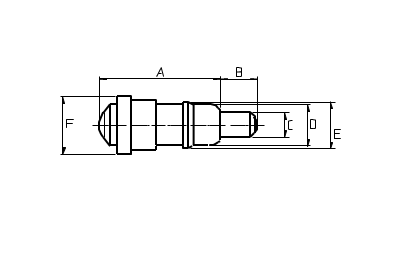

TechnologyN/AA7.1
B1.7C0.9
D1.5E1.7
F2.1Working Range(Reference)7.35〜7.9 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.6N MIN〜1.2N MAX
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance100mΩOperation Temp Range-40℃〜+85℃
Cycle Durability5,000 timesSoldering MethodFloating
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
Note

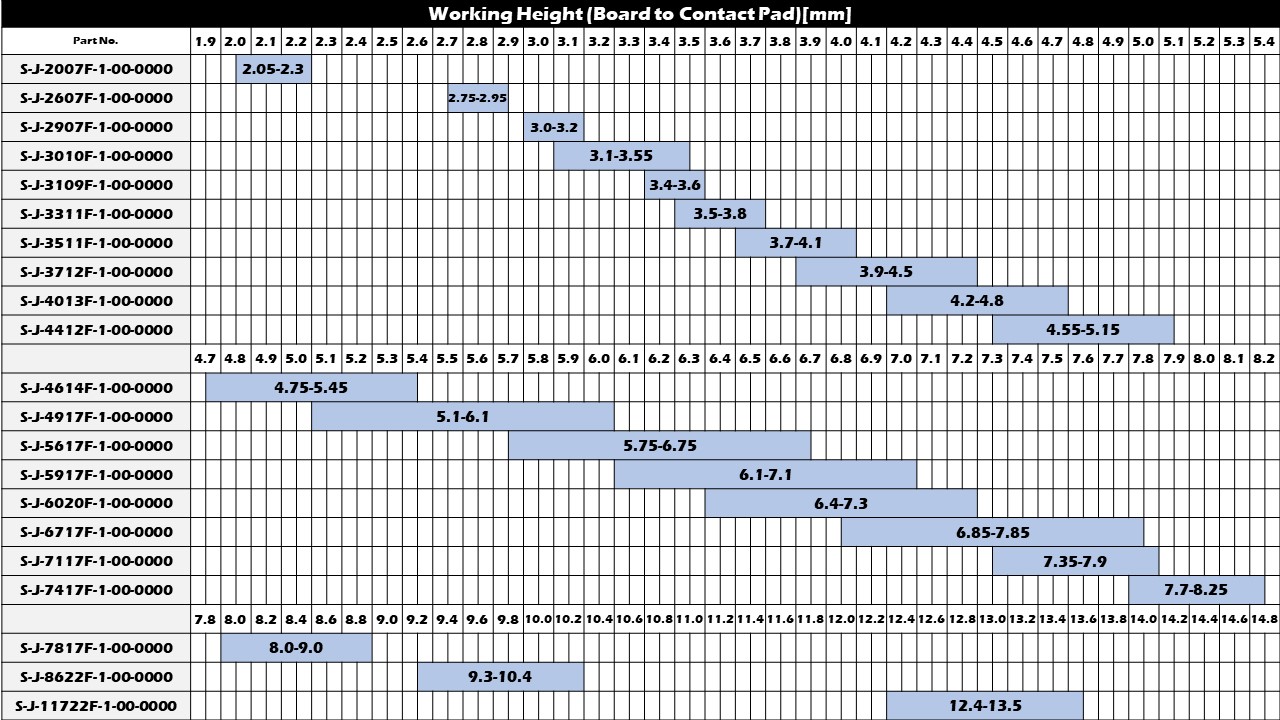

Working Range(Reference)

Working Range(Reference)
