S-J-6717F-1-00-0000

SPRING CONNECTOR™/Pogo Pins
Floating Connector

RoHS

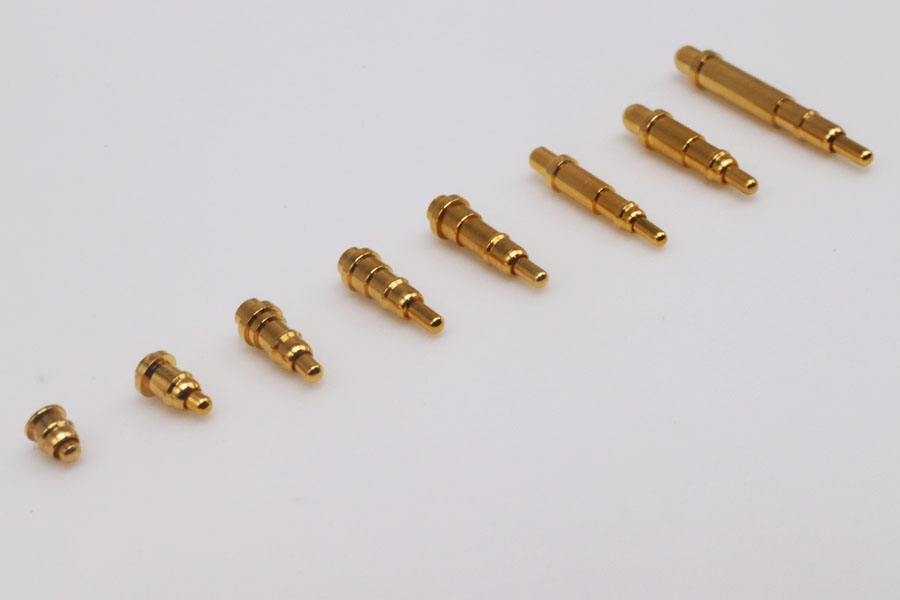

S-J-6717F-1-00-0000Product image

Floating Conncetor_1Pin_Floating Series

S-J-6717F-1-00-0000

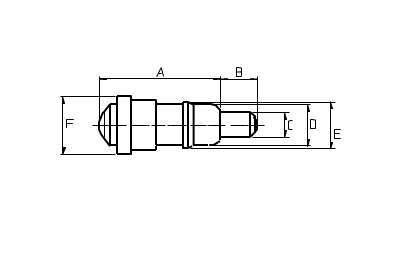

TechnologyN/AA6.7
B1.7C0.9
D1.5E1.7
F1.8Working Range(Reference)6.85〜7.85 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force1.5 mm<1.2 N
1.0 mm:0.65 N
0.5 mm>0. 3N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability5,000 timesSoldering MethodFloating
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
Note

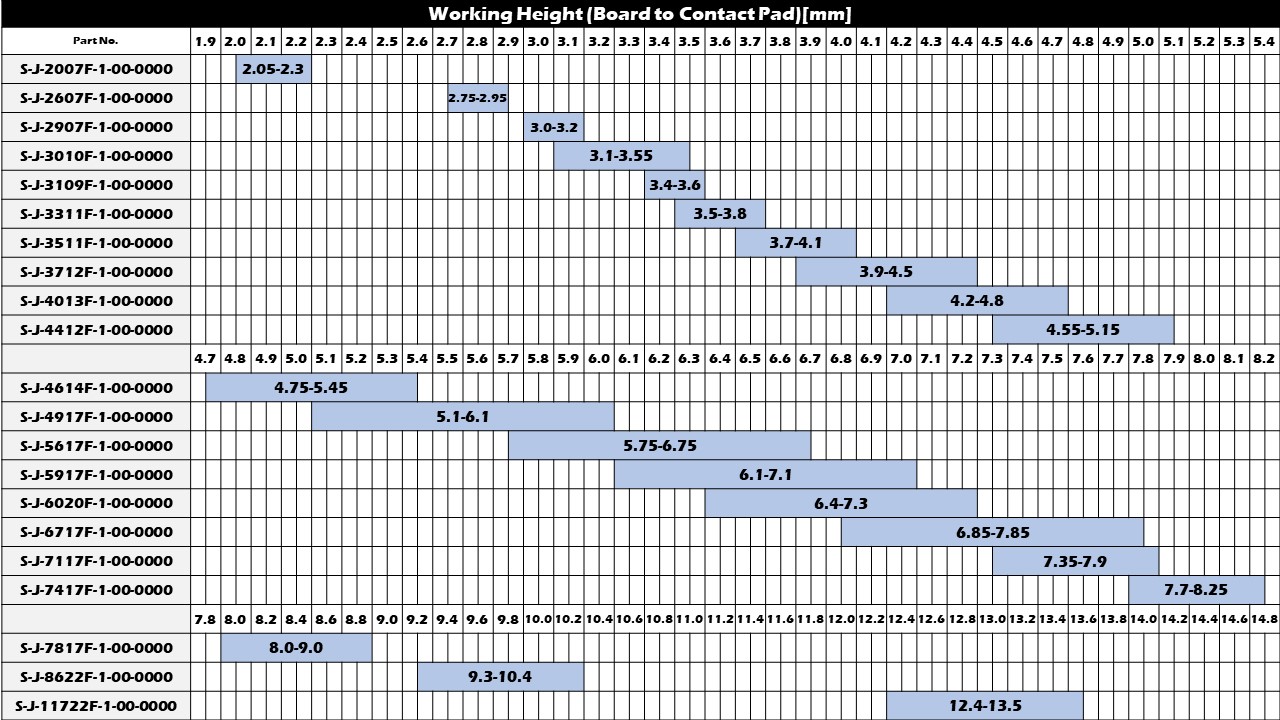

Working Range(Reference)

Working Range(Reference)
