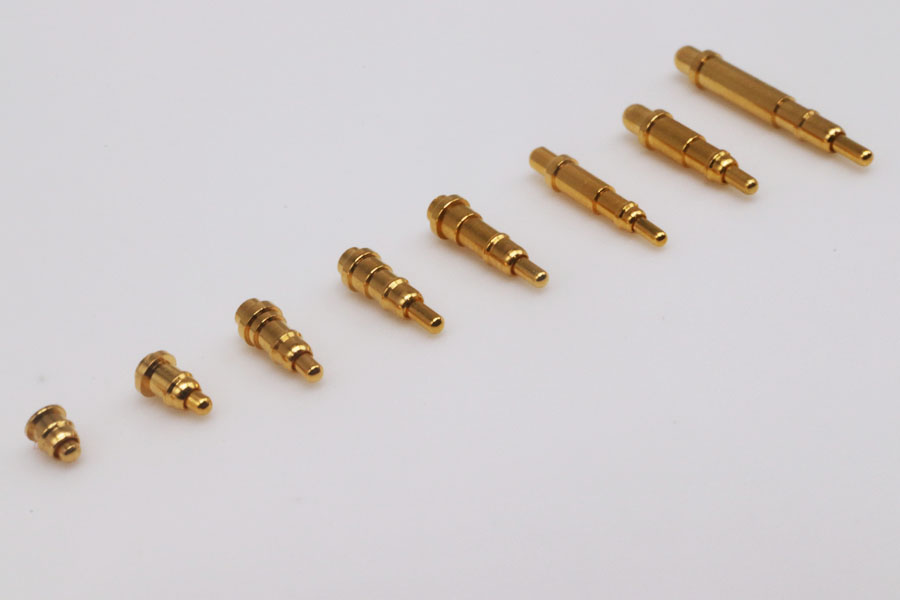

Product image

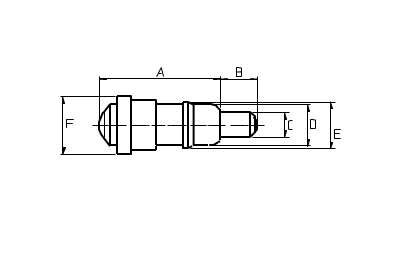

| Technology | N/A | A | 5.6 |
|---|---|---|---|
| B | 1.7 | C | 0.9 |
| D | 1.5 | E | 1.7 |

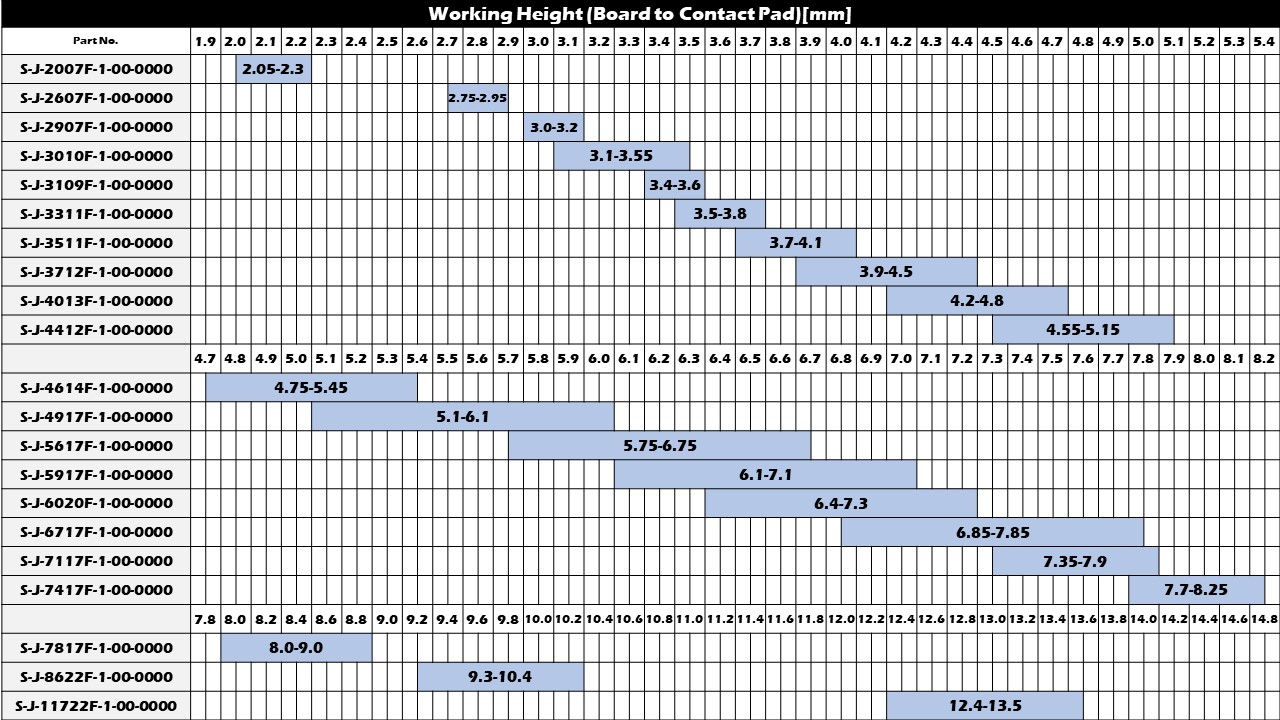

| F | 2.3 | Working Height | - |
| Working Range(Reference) | 5.75〜6.75 mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 1 | Pitch | Other |
| Spring Force | 0.75 N | Rated Current | 2 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 5,000 times |
| Soldering Method | Floating | CAP | W/O |
| Packaging | Bulk | Packaging Quantity | 5,000pcs |
Note
Working Range(Reference)
