S-J-4412F-1-00-0000

Pogo Pin Connectors
Floating Connector

RoHS

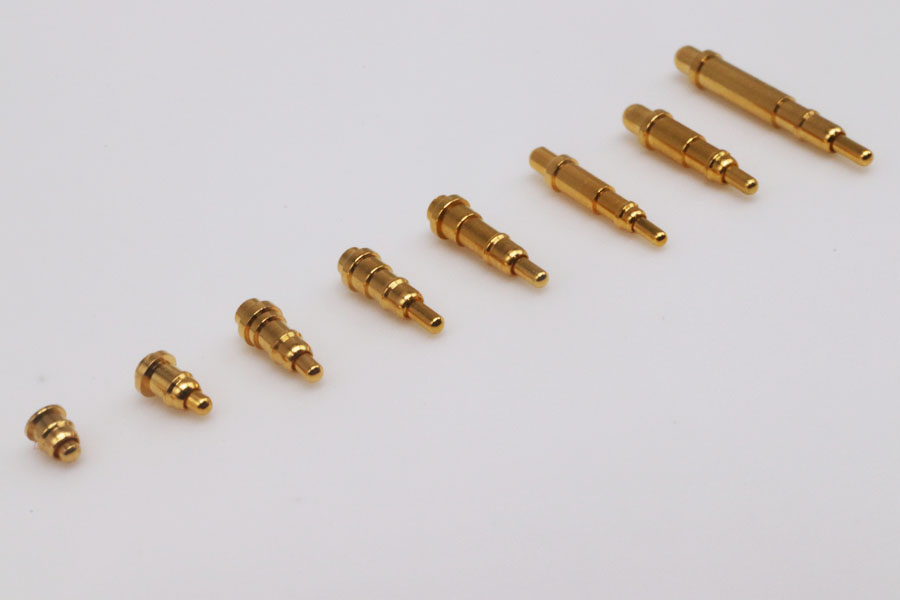

S-J-4412F-1-00-0000Product image

Floating Conncetor_1Pin_Floating Series

S-J-4412F-1-00-0000

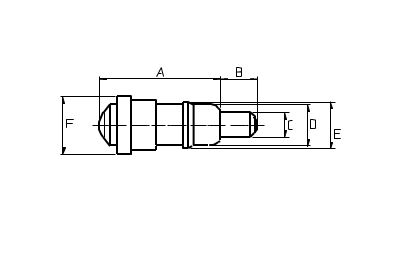

TechnologyN/AA4.4
B1.2C0.9
D1.5E1.7

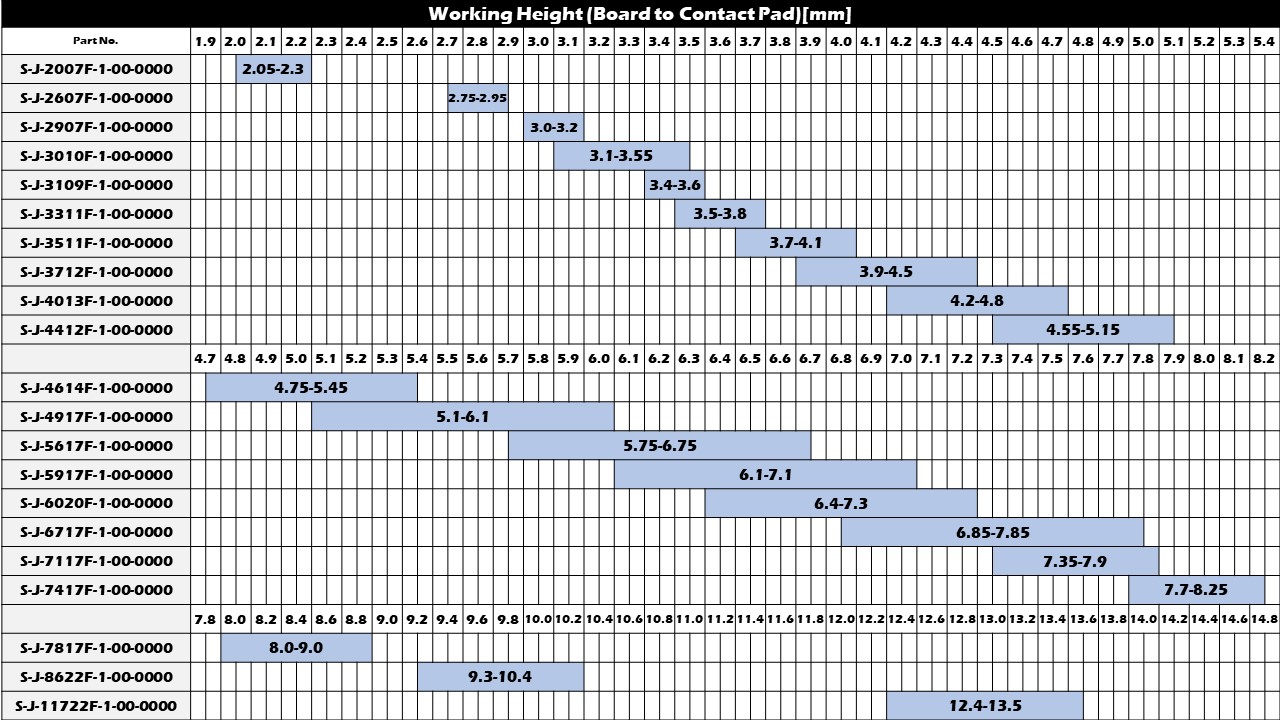

F2.1Working Range(Reference)4.55〜5.15 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.75 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability5,000 timesSoldering MethodFloating
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
Note

Working Range(Reference)

Working Range(Reference)
