S-J-3311F-1-00-0000

Pogo Pin Connectors
Floating Connector

RoHS

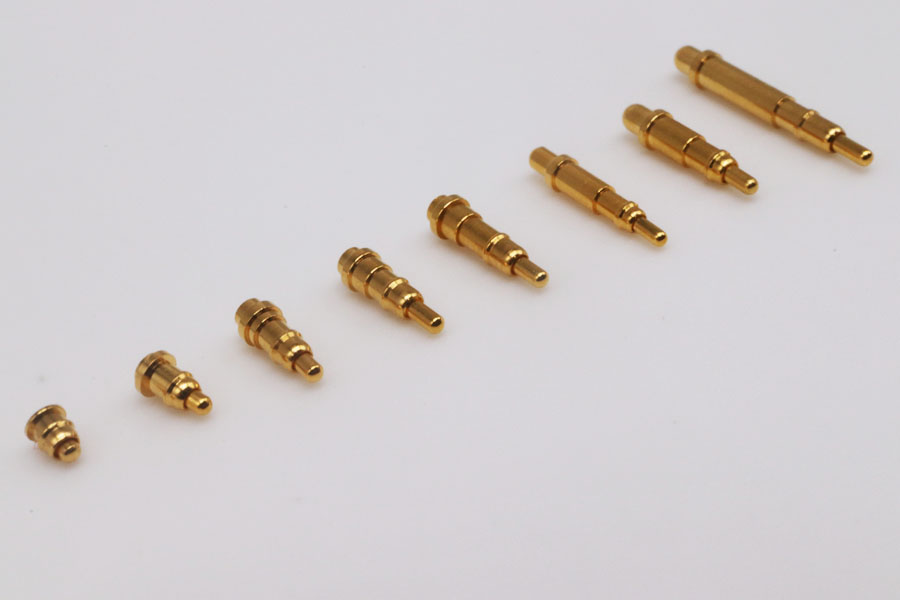

S-J-3311F-1-00-0000Product image

Floating Conncetor_1Pin_Floating Series

S-J-3311F-1-00-0000

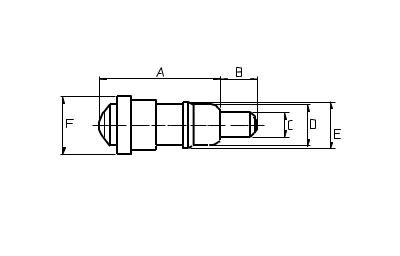

TechnologyN/AA3.3
B1.1C0.8
D1.3E1.5
F1.9Working Range(Reference)3.5〜3.8 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.4N MIN〜1.1N MAX
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance100mΩOperation Temp Range-40℃〜+85℃
Cycle Durability5,000 timesSoldering MethodFloating
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
Note

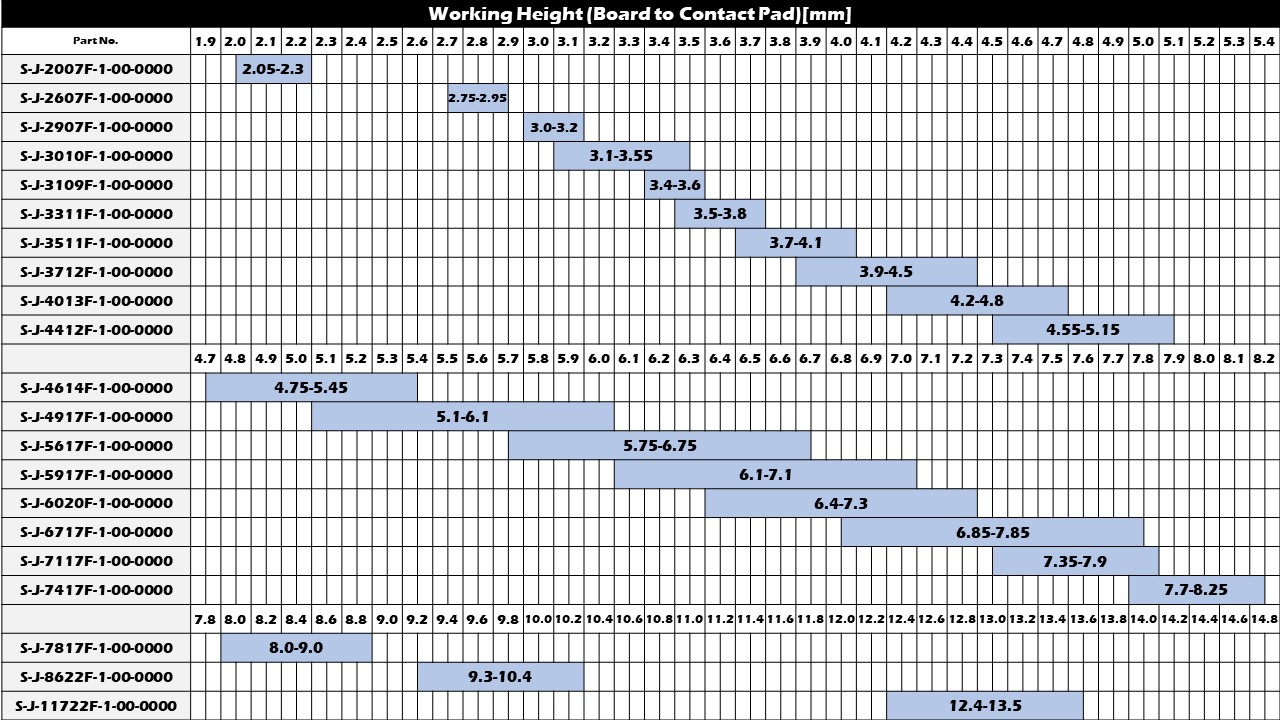

Working Range(Reference)

Working Range(Reference)
