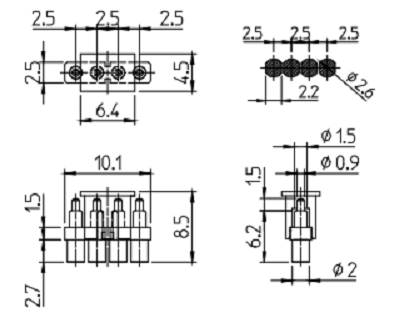

Pogo Pin Connectors_4Pin_2.5mm Pitch_SMD Vertical Series
| Technology | N/A | Working Height | 6.7 mm |
|---|---|---|---|
| Working Range(Reference) | 6.3mm～6.95mm | Plug/Rece(Male/Female) | Male |
| Row | Single | Boss | W/O |
| Number of Pins | 4 | Pitch | 2.5 mm |
| Spring Force | 1.08 N | Rated Current | 2 A |
| Rated Voltage | AC/DC 12V | Contact Resistance | 50mΩ |
| Operation Temp Range | -40℃〜＋85℃ | Cycle Durability | 20,000 times |
| Soldering Method | SMD_Vertical | CAP | W |
| Packaging | Tape&Reel | Packaging Quantity | 500pcs |
