J-5112H-4-20-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

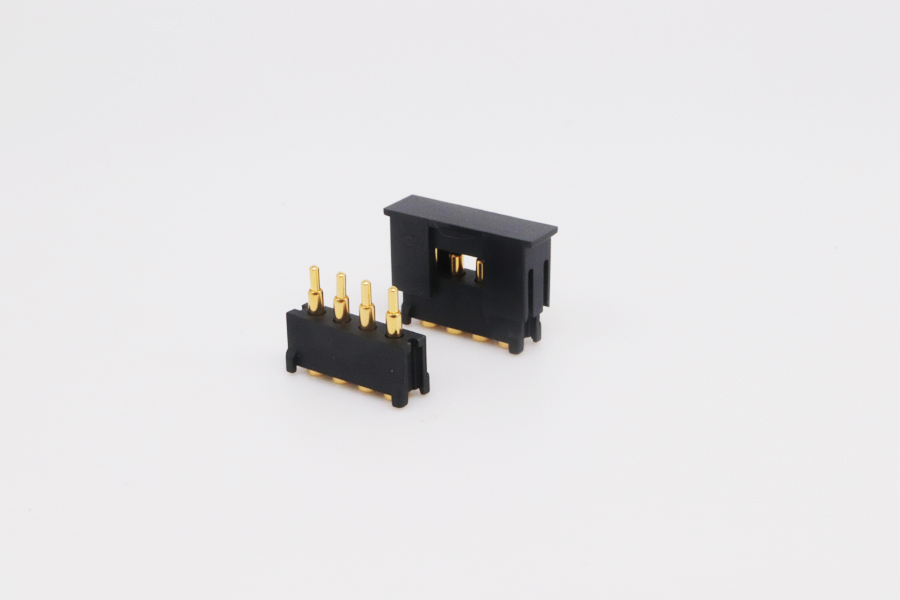

J-5112H-4-20-0000Product image

Pogo Pin Connectors_4Pin_2.0mm Pitch_SMD Vertical Series

J-5112H-4-20-0000

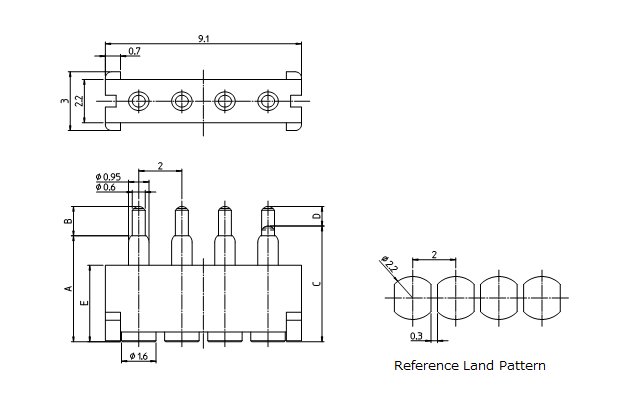

TechnologyN/AA5.1
B1.2C5.5
D0.8E3.9
Working Height5.5 mmWorking Range(Reference)5.2〜5.7 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins4
Pitch2.0 mmSpring Force1.0 N
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity500pcs
Note

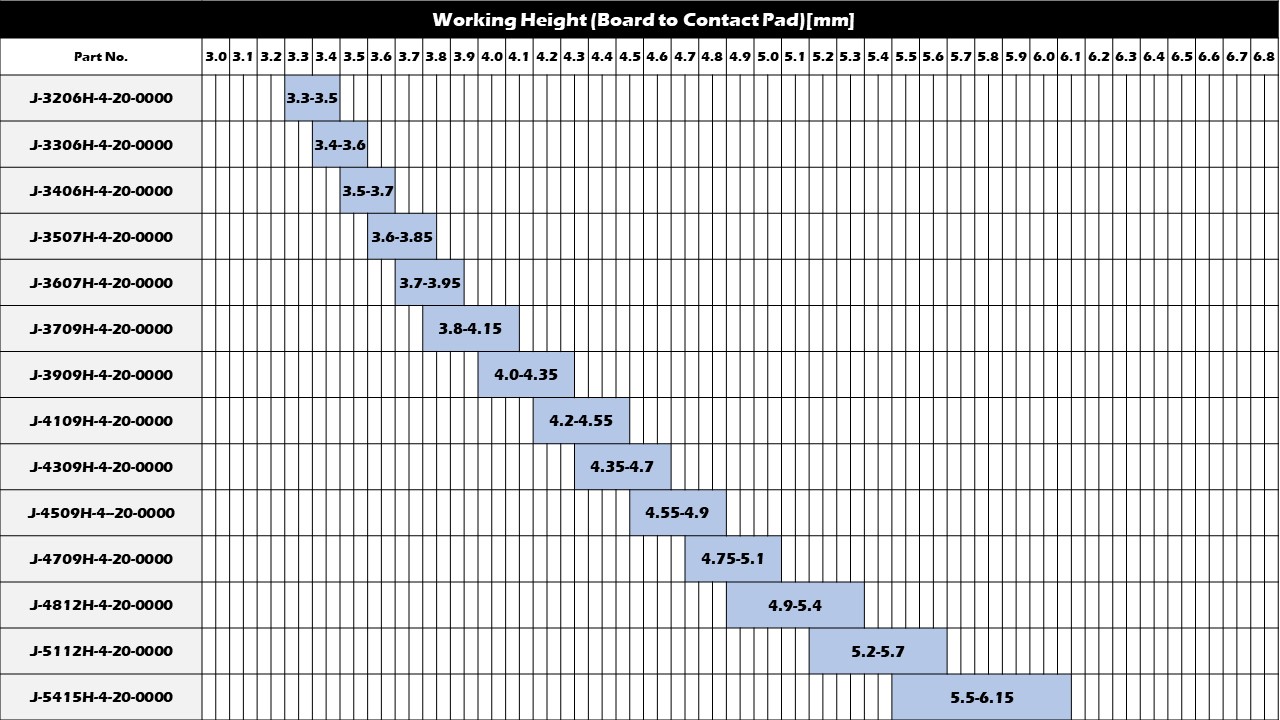

Working Range(Reference)

Working Range(Reference)
