J-4109H-3-20-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

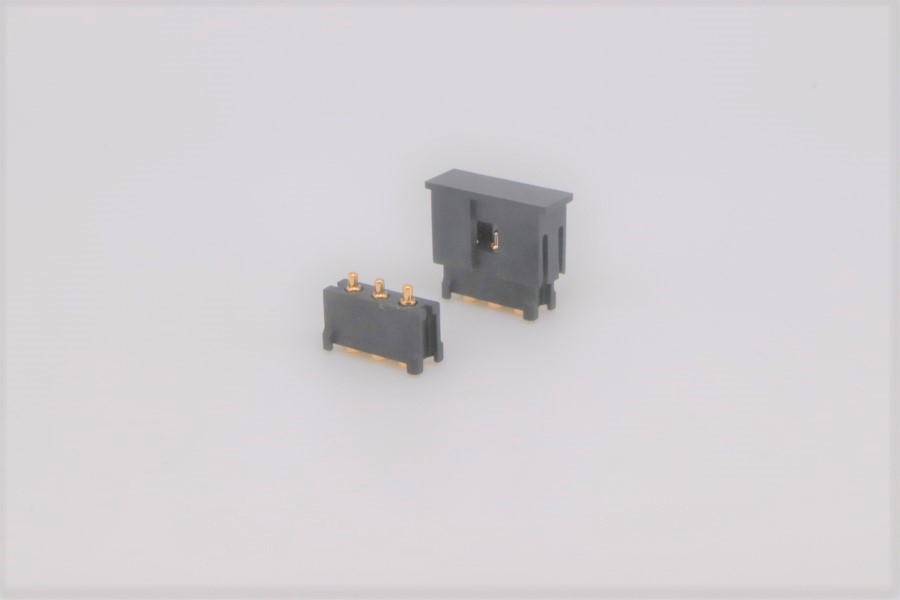

J-4109H-3-20-0000Product image

Pogo Pin Connectors_3Pin_2.0mm Pitch_SMD Vertical Series

J-4109H-3-20-0000

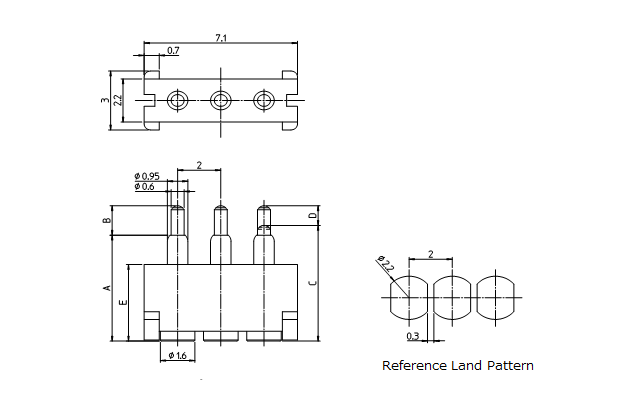

TechnologyN/AA4.1
B0.9C4.4
D0.6E3.9
Working Height4.4 mmWorking Range(Reference)4.2〜4.55 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins3
Pitch2.0 mmSpring Force1.0 N
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity500pcs
Note

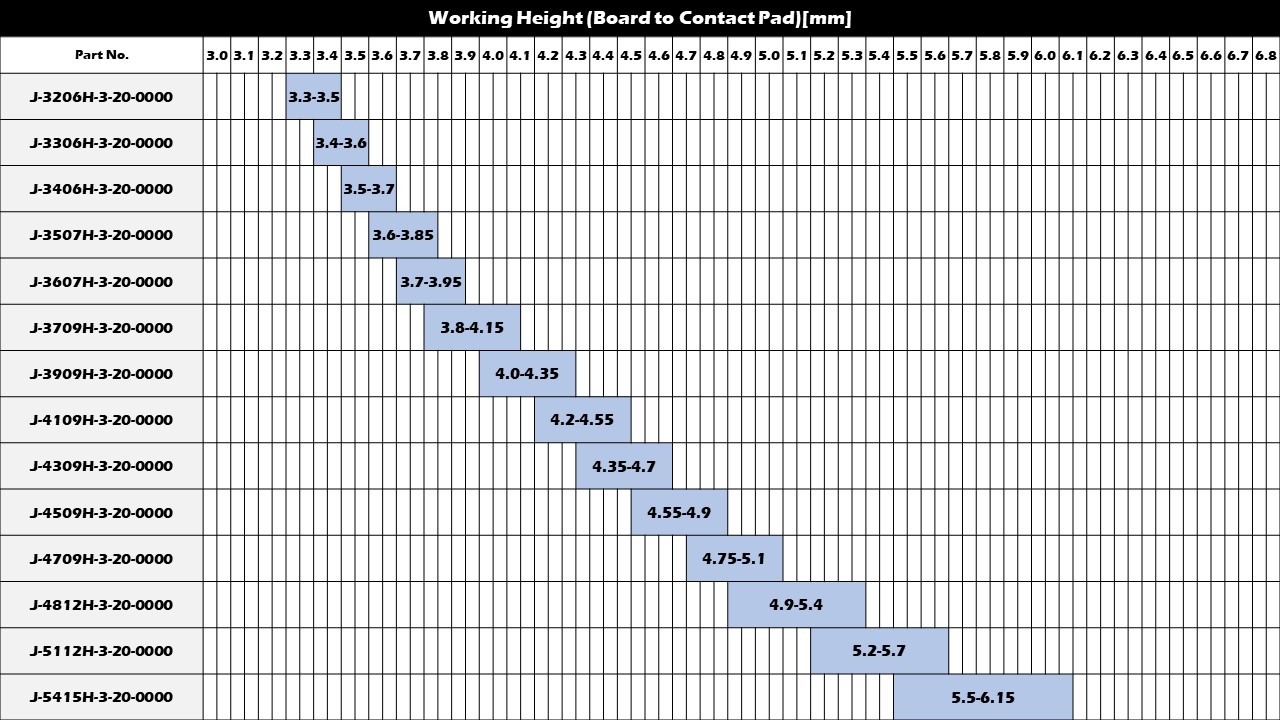

Working Range(Reference)

Working Range(Reference)
