J-3607H-3-20-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

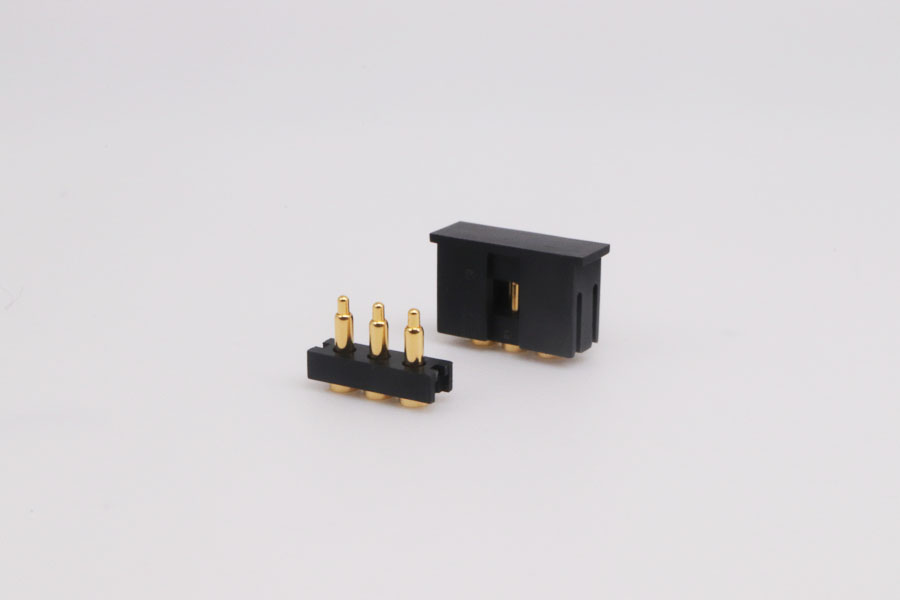

J-3607H-3-20-0000Product image

Pogo Pin Connectors_3Pin_2.0mm Pitch_SMD Vertical Series

J-3607H-3-20-0000

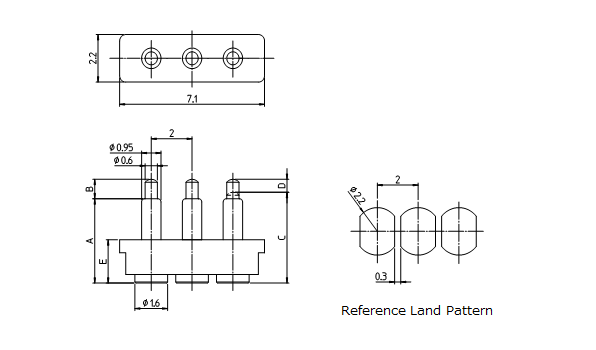

TechnologyN/AA3.6
B0.7C3.8
D0.5E2

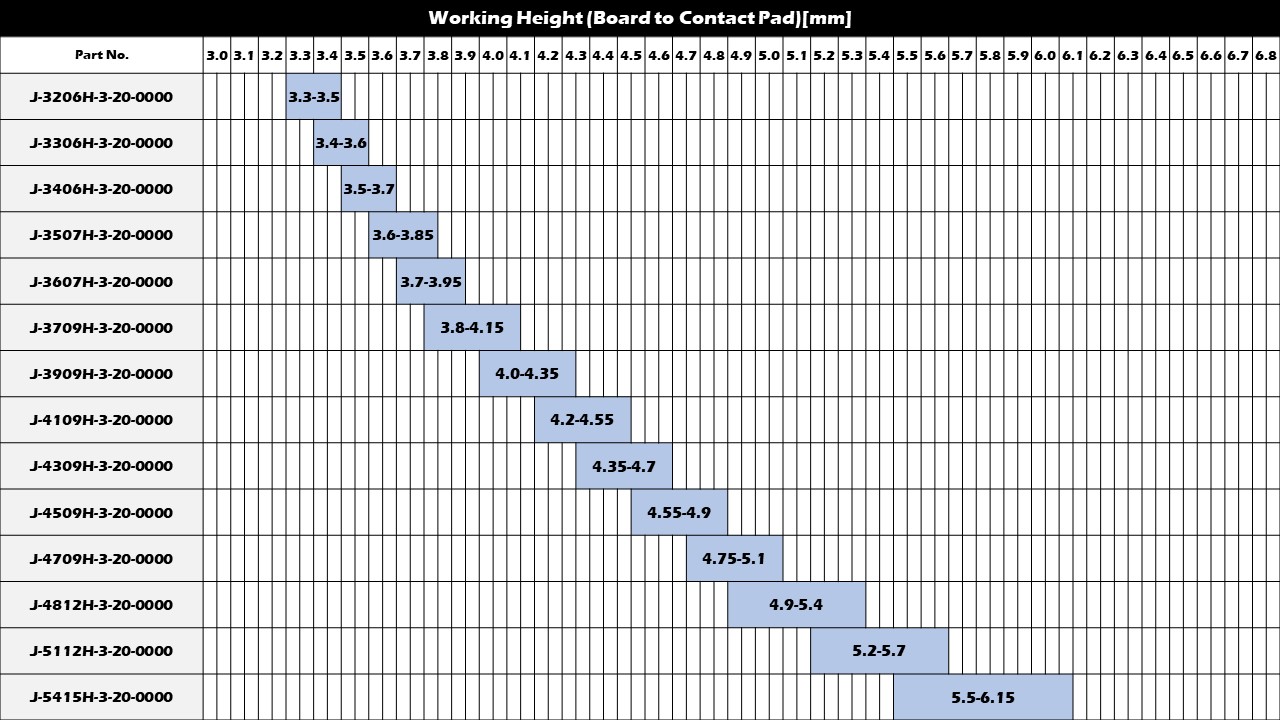

Working Height3.8 mmWorking Range(Reference)3.7〜3.95 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins3
Pitch2.0 mmSpring Force1.0 N
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity1,000pcs
Note

Working Range(Reference)

Working Range(Reference)
