Product image

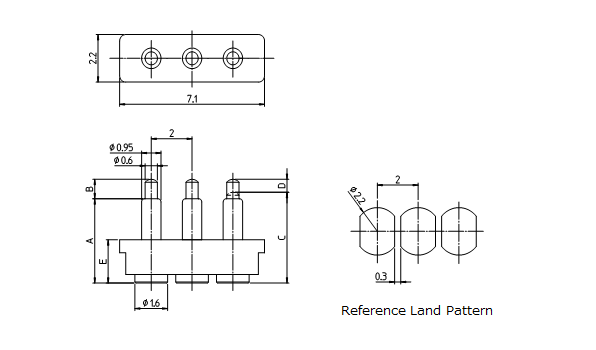

| Technology | N/A | A | 3.2 |
|---|---|---|---|
| B | 0.6 | C | 3.4 |
| D | 0.4 | E | 2 |
| Working Height | 3.4 mm | Working Range(Reference) | 3.3〜3.5 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 3 |
| Pitch | 2.0 mm | Spring Force | 1.0 N |
| Rated Current | 1A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | SMD_Vertical |
| CAP | W | Packaging | Tape&Reel |
| Packaging Quantity | 1,000pcs |
Note

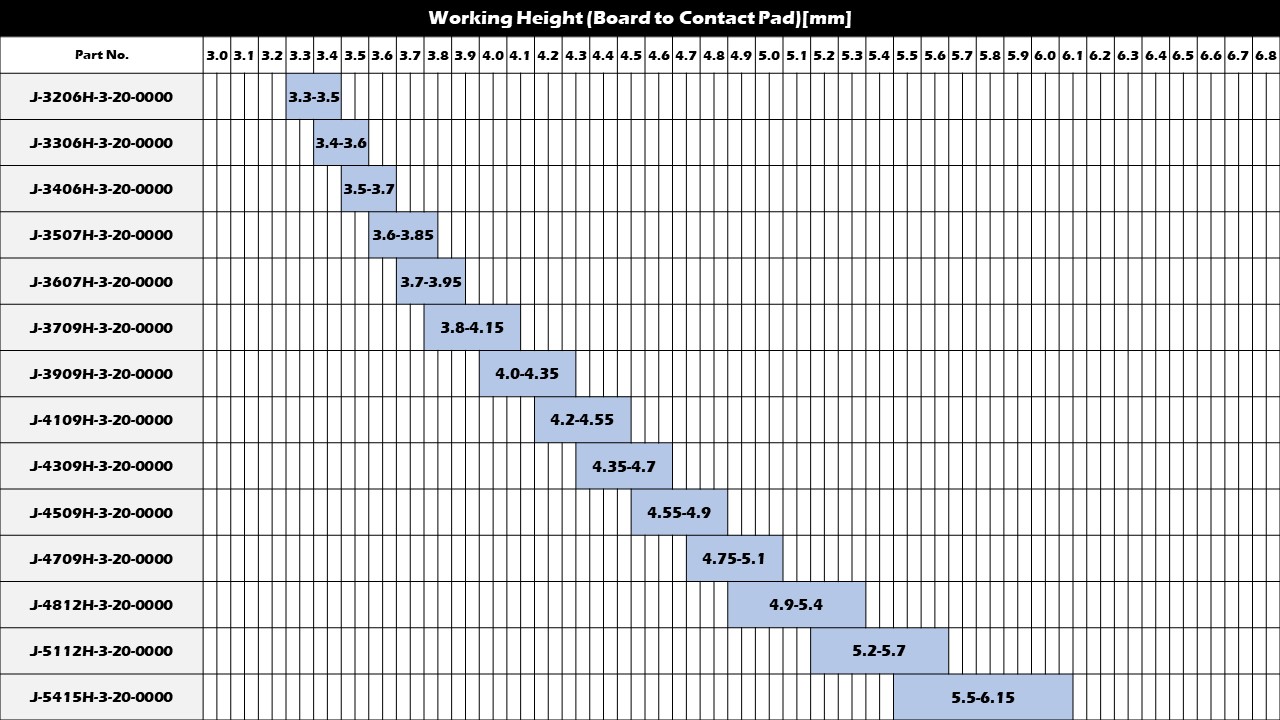

Working Range(Reference)
