S-J-2910H-2-40-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

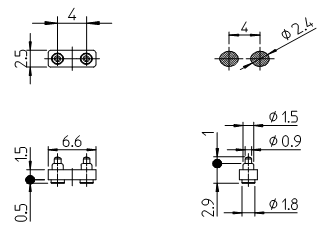

S-J-2910H-2-40-0000Product image

Pogo Pin Connectors_2Pin_4.0mm Pitch_SMD Vertical Series

S-J-2910H-2-40-0000

TechnologyN/AWorking Height3.2 mm
Working Range(Reference)3.0~3.4mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins2Pitch4.0 mm
Spring Force1.08 NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW/O
PackagingTape&ReelPackaging Quantity2,000pcs
Note
