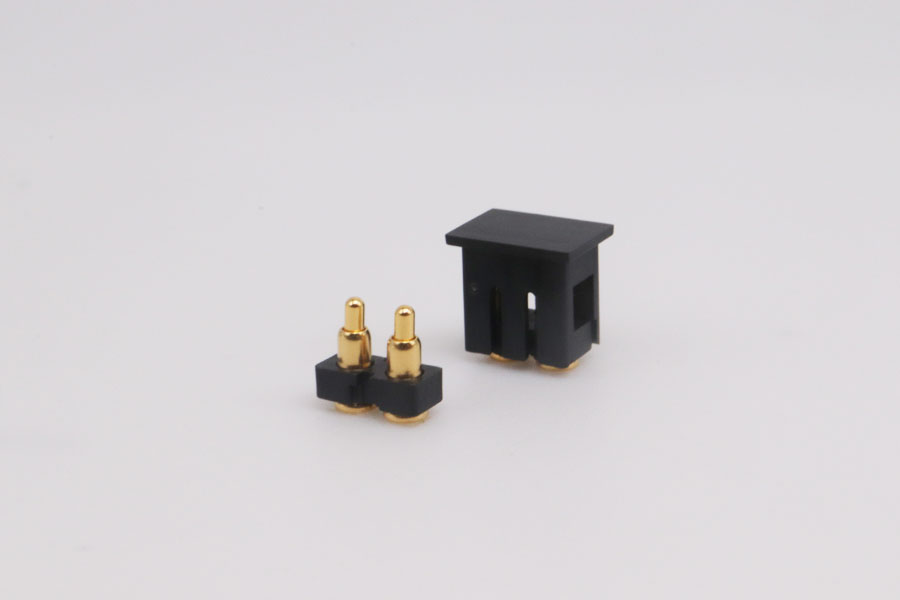

Product image
| Technology | N/A | A | 3.9 |
|---|---|---|---|
| B | 1.5 | C | 4.4 |
| D | 1 | E | 2 |
| F | 2 | G | 2.6 |
| Working Height | 4.4 mm | Working Range(Reference) | 4.0〜4.65 mm |
| Plug/Rece(Male/Female) | Male | Row | Single |
| Boss | W/O | Number of Pins | 2 |
| Pitch | 3.0 mm | Spring Force | 1.08 N |
| Rated Current | 2A | Rated Voltage | AC/DC 12V |
| Contact Resistance | 50mΩ | Operation Temp Range | -40℃〜＋85℃ |
| Cycle Durability | 20,000 times | Soldering Method | SMD_Vertical |
| CAP | W | Packaging | Tape&Reel |
| Packaging Quantity | 1,000pcs |
Note

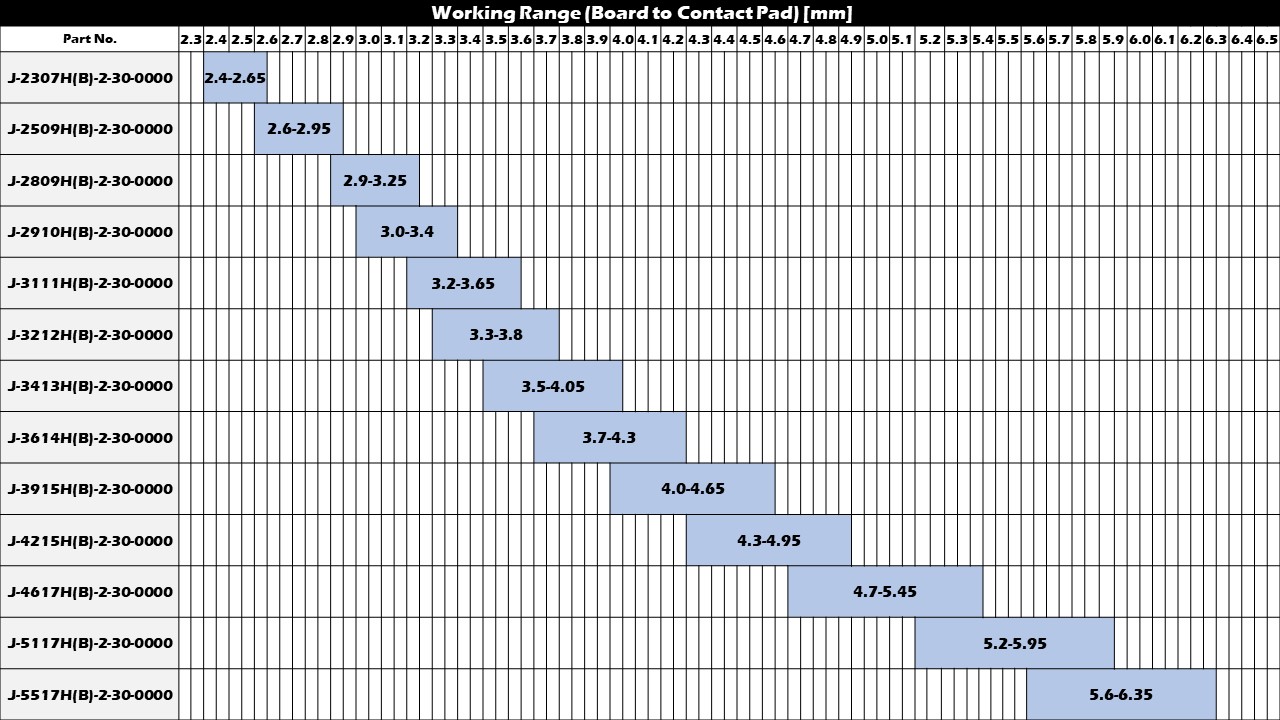

Working Range(Reference)
