J-5117H-2-25-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

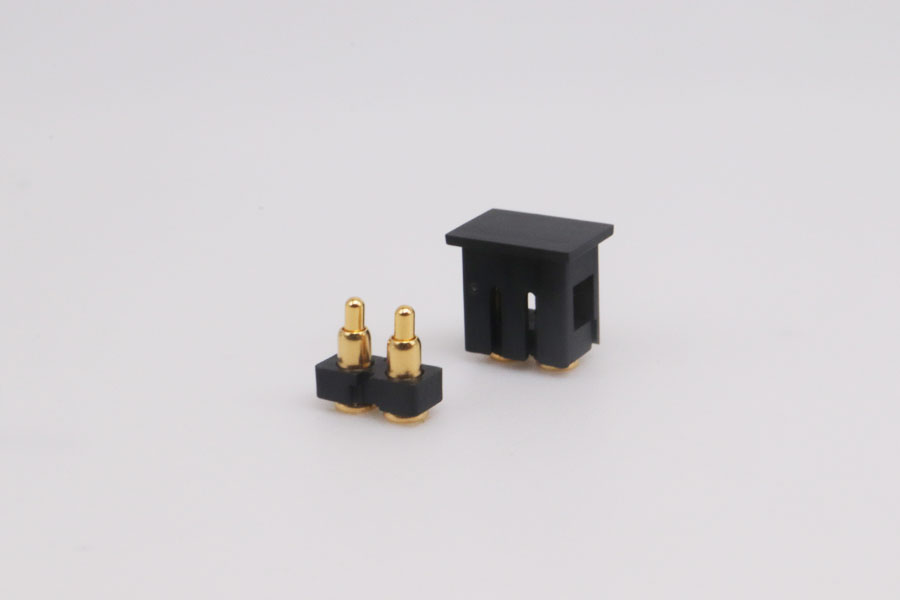

J-5117H-2-25-0000Product image

Pogo Pin Connectors_2Pin_2.5mm Pitch_SMD Vertical Series

J-5117H-2-25-0000

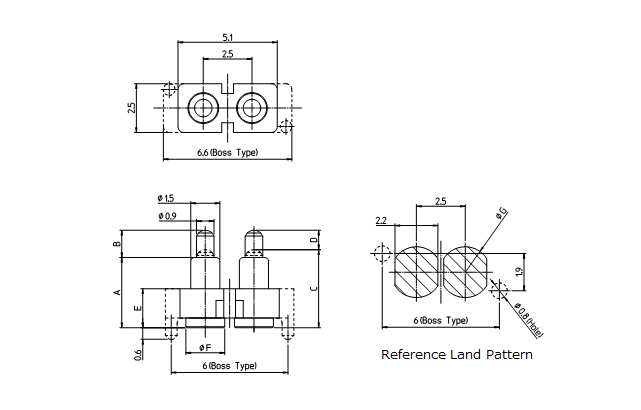

TechnologyN/AA5.1
B1.7C5.7
D1.1E4
F2G2.6
Working Height5.7 mmWorking Range(Reference)5.2〜5.95 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins2
Pitch2.5 mmSpring Force1.08 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
Compatible ProductJ-4000H-2-25-0000CAPW
PackagingTape&ReelPackaging Quantity500pcs
Note

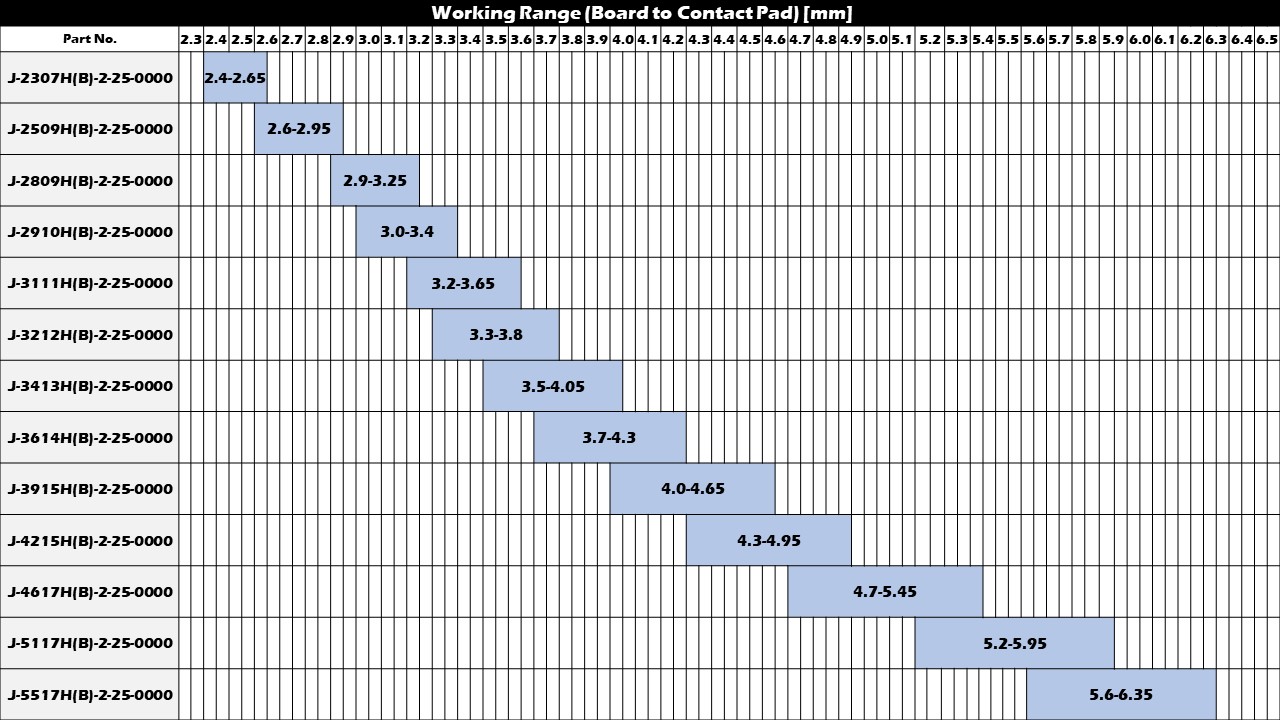

Working Range(Reference)

Working Range(Reference)

Mating Pad
