J-2307H-2-25-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

J-2307H-2-25-0000Product image

Pogo Pin Connectors_2Pin_2.5mm Pitch_SMD Vertical Series

J-2307H-2-25-0000

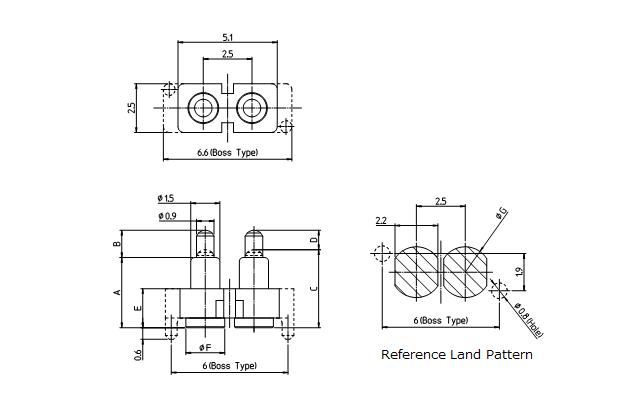

TechnologyN/AA2.3
B0.7C2.5
D0.5E2
F1.8G2.4
Working Height2.5 mmWorking Range(Reference)2.4〜2.65 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins2
Pitch2.5 mmSpring Force0.9 N
Rated Current2ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
Compatible ProductJ-4000H-2-25-0000CAPW
PackagingTape&ReelPackaging Quantity1,000pcs
Note

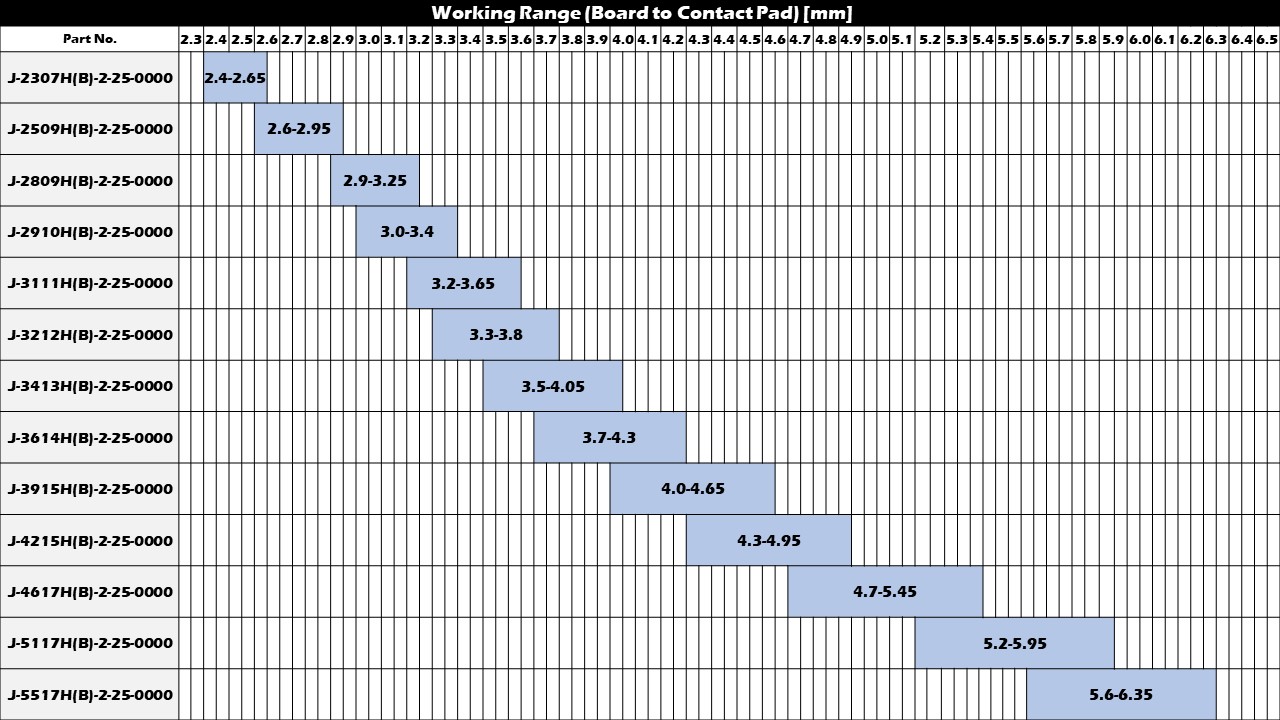

Working Range(Reference)

Working Range(Reference)

Mating Pad
