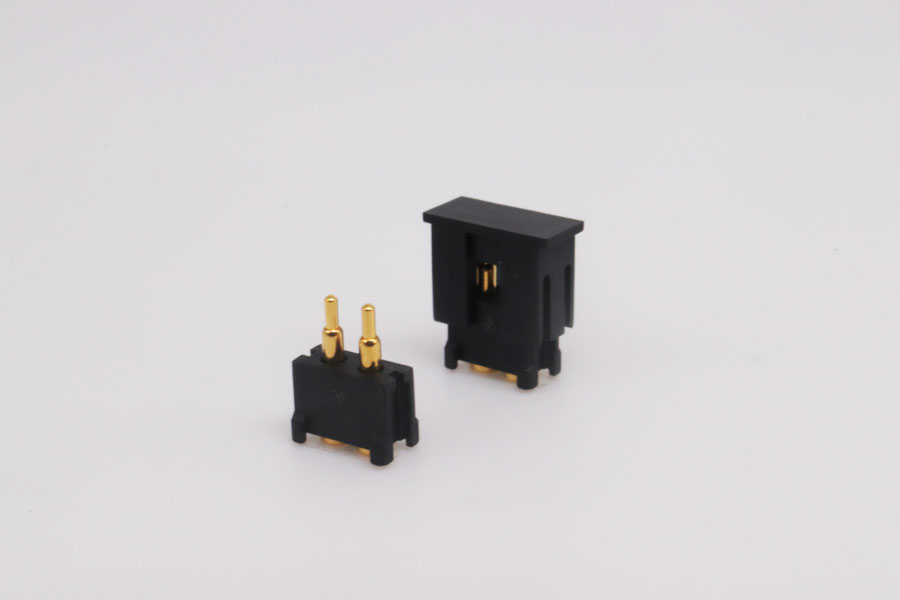

Pogo Pin Connectors_2Pin_2.0mm Pitch_SMD Vertical Series

J-5415H-2-20-0000

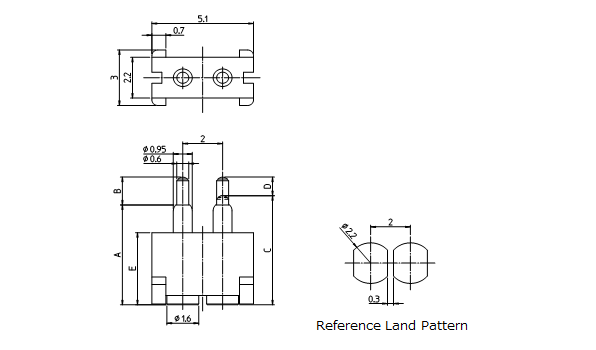

TechnologyN/AA5.4
B1.5C5.9
D1E3.9

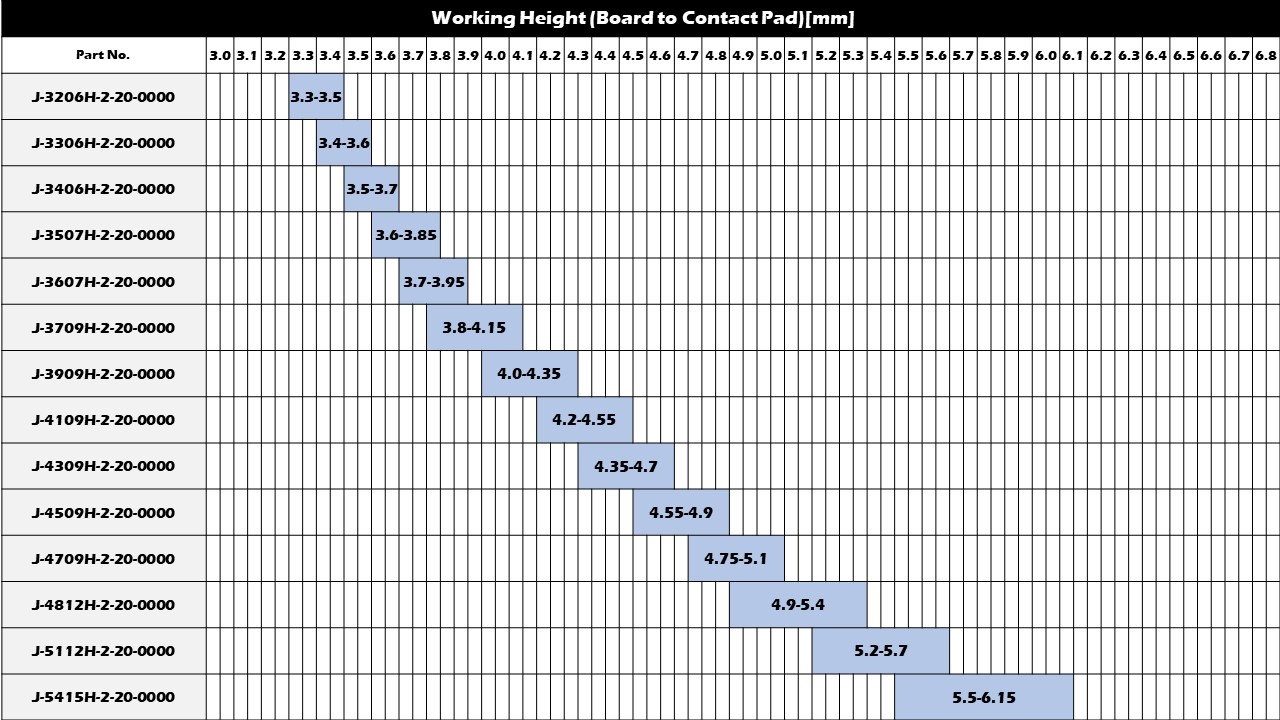

Working Height5.9 mmWorking Range(Reference)5.5〜6.15 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins2
Pitch2.0 mmSpring Force1.0 N
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity500pcs
Note

Working Range(Reference)

Working Range(Reference)
