J-4812H-2-20-0000

Pogo Pin Connectors


RoHS

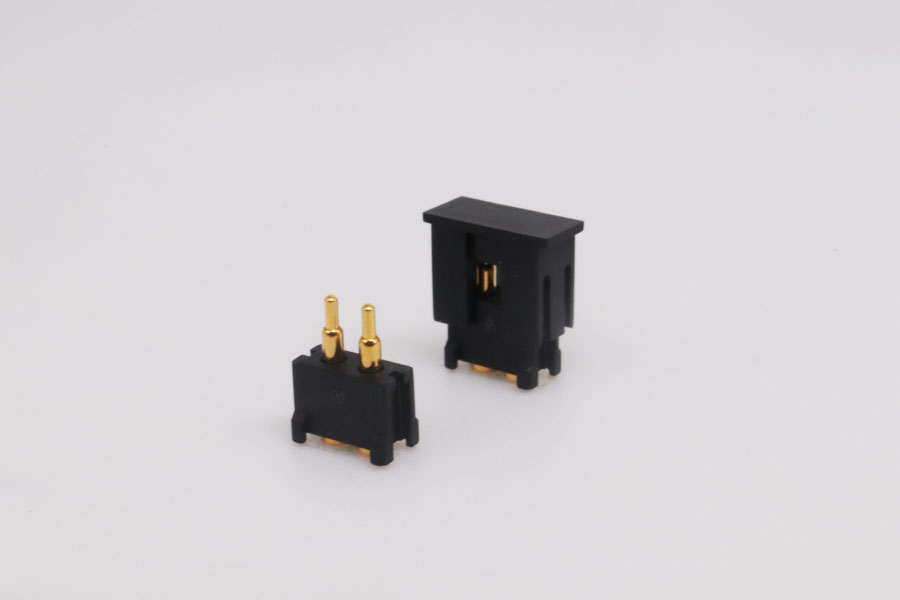

J-4812H-2-20-0000Product image

Pogo Pin Connectors_2Pin_2.0mm Pitch_SMD Vertical Series

J-4812H-2-20-0000

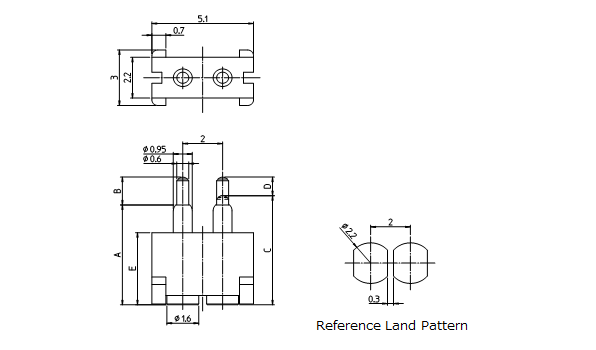

TechnologyN/AA4.8
B1.2C5.2
D0.8E3.9
Working Height5.2 mmWorking Range(Reference)4.9〜5.4 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins2
Pitch2.0 mmSpring Force1.0 N
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity500pcs
Note

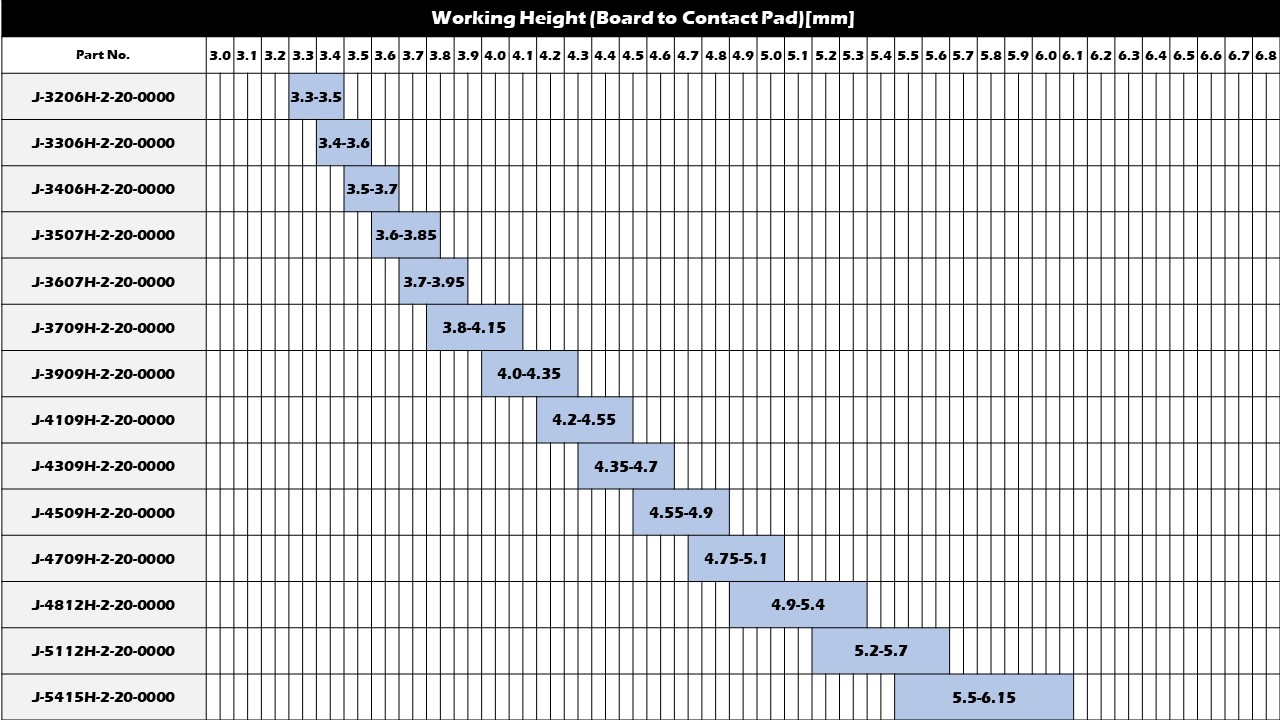

Working Range(Reference)

Working Range(Reference)
