J-3909H-2-20-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

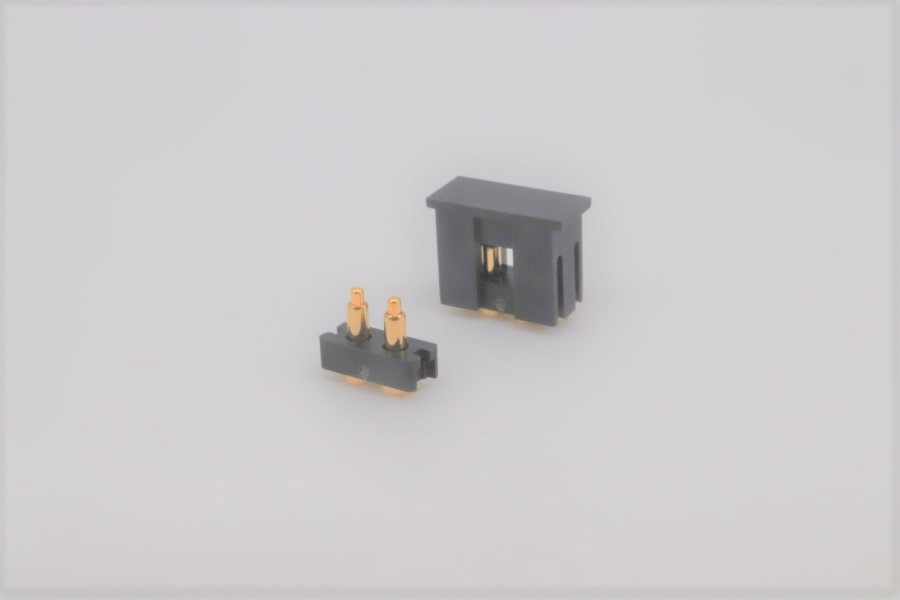

J-3909H-2-20-0000Product image

Pogo Pin Connectors_2Pin_2.0mm Pitch_SMD Vertical Series

J-3909H-2-20-0000

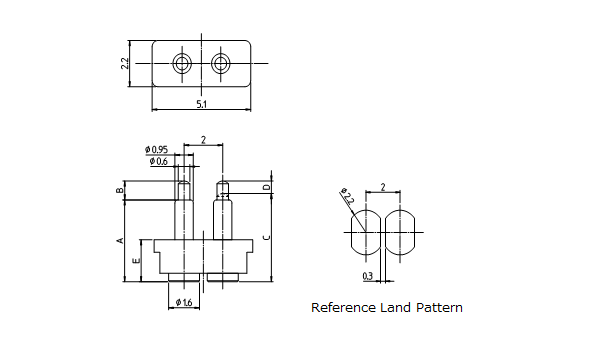

TechnologyN/AA3.9
B0.9C4.2
D0.6E2
Working Height4.2 mmWorking Range(Reference)4.0〜4.35 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins2
Pitch2.0 mmSpring Force1.0 N
Rated Current1ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPWPackagingTape&Reel
Packaging Quantity1,000pcs
Note

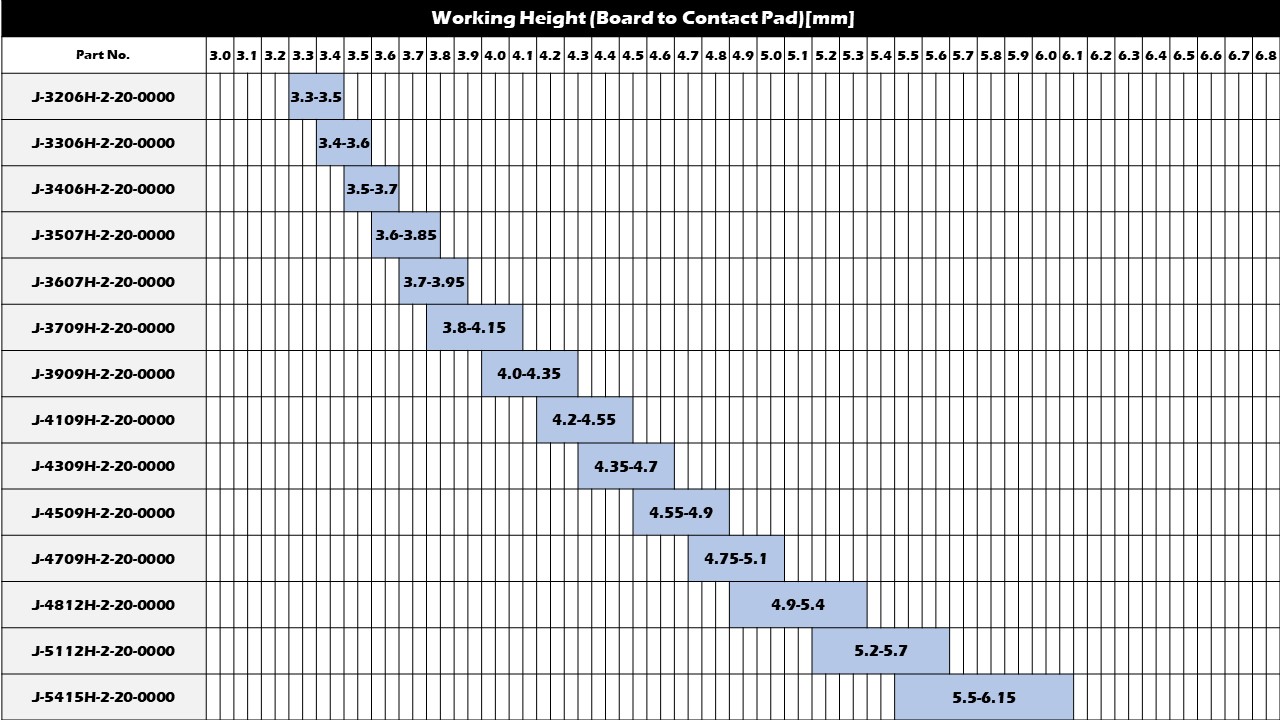

Working Range(Reference)

Working Range(Reference)
