J-7525P-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

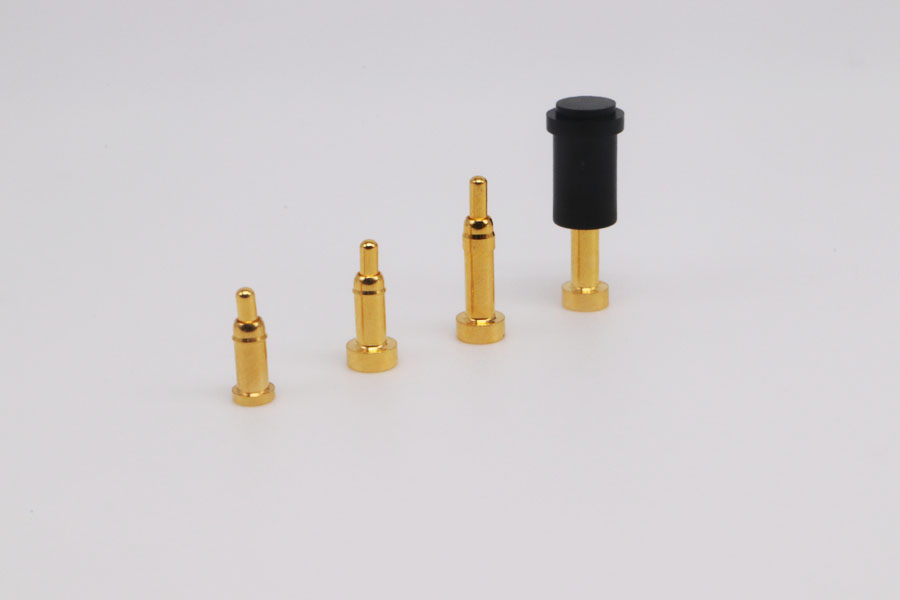

J-7525P-1-00-0000Product image

Pogo Pin Connectors_1Pin_SMD Vertical Series

J-7525P-1-00-0000

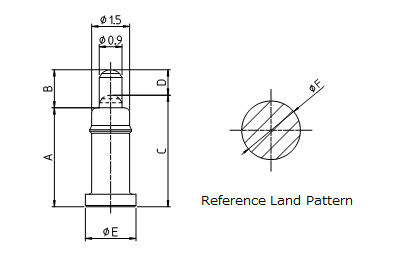

TechnologyN/AA7.5
B2.5C8.3
D1.7E2.5
F3.1Working Height8.3 mm
Working Range(Reference)7.6〜8.75 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.08 NRated Current2A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability20,000 times
Soldering MethodSMD_VerticalCAPW
PackagingTape&ReelPackaging Quantity400pcs
Note

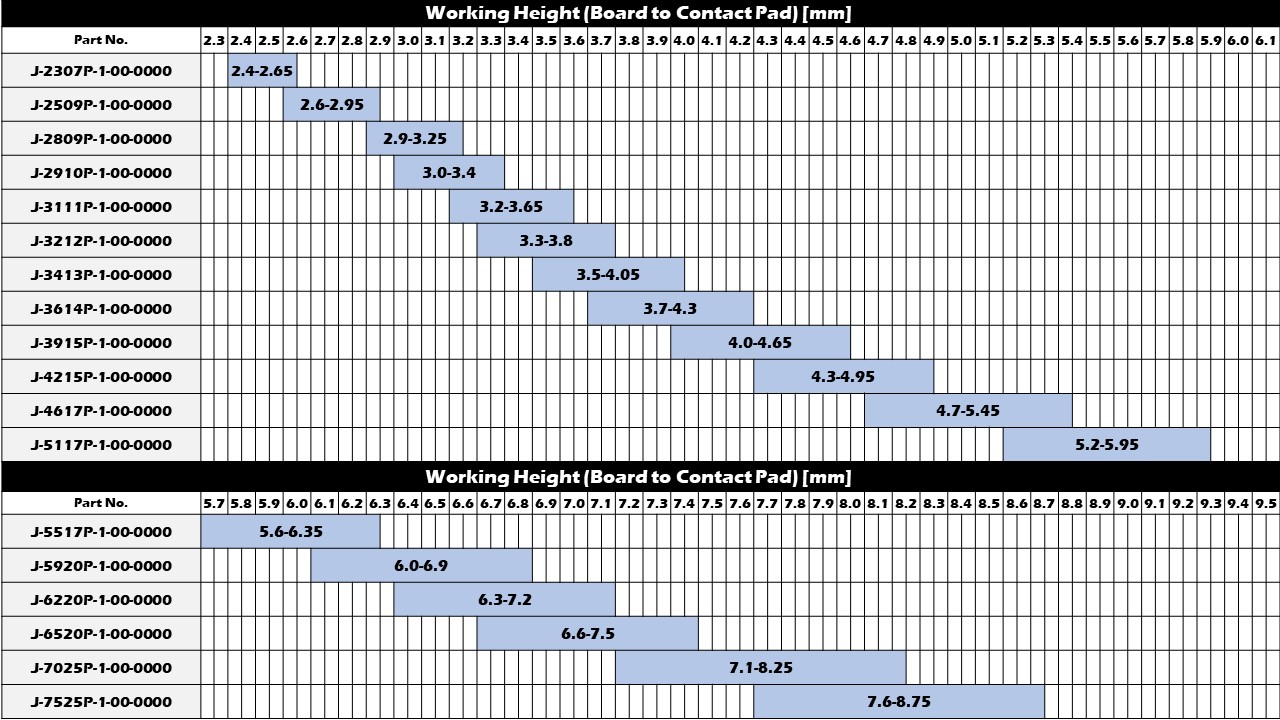

Working Range(Reference)

Working Range(Reference)
