S-J-6016PT10A-1-00-0000

Pogo Pin Connectors
Through Hole Connector

RoHS

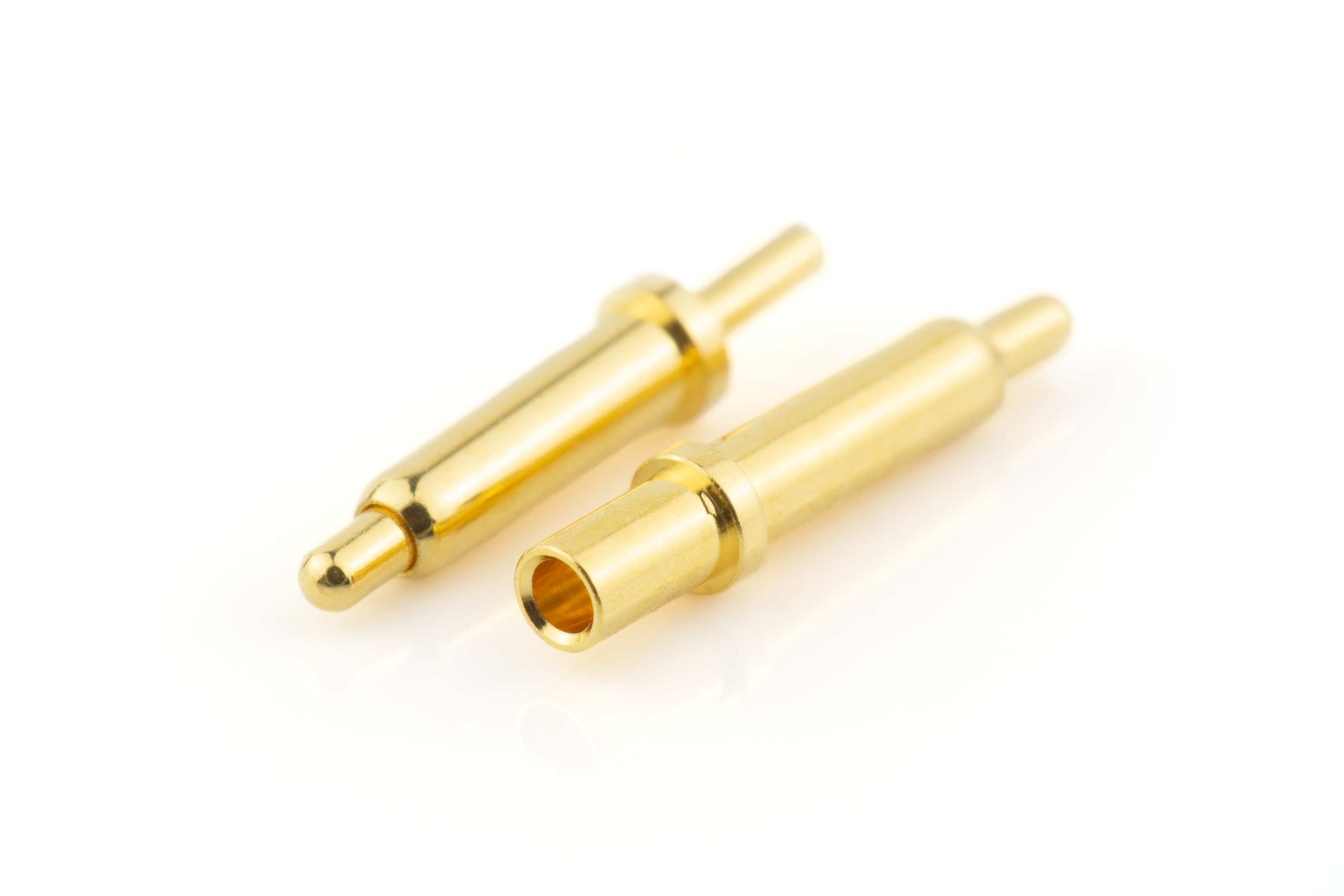

S-J-6016PT10A-1-00-0000Product image

Through Hole Connector_1Pin_Through Hole_High Current_Series

TechnologyHigh CurrentWorking Height6.5 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force1.28 N
Rated Current10ARated VoltageAC/DC 12V
Contact Resistance50mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPW/OPackagingBulk
Packaging Quantity5,000pcs
