J-5515PC-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

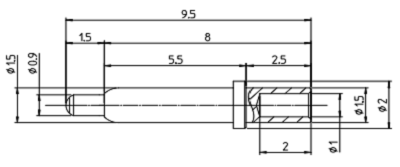

J-5515PC-1-00-0000Product image

Pogo Pin Connectors_1Pin_Cable to Wire_High Current_Series

J-5515PC-1-00-0000

TechnologyHigh CurrentWorking Height6.0 mm
Working Range(Reference)5.6〜6.25 mmPlug/Rece(Male/Female)Male
RowSingleBossW/O
Number of Pins1PitchOther
Spring Force1.0 NRated Current5A
Rated VoltageAC/DC 12VContact Resistance50mΩ
Operation Temp Range-40℃〜+85℃Cycle Durability5,000 times
Soldering MethodCable to wireCAPW/O
PackagingBulkPackaging Quantity500pcs
Note
