J-2109PU-1-00-0000

Pogo Pin Connectors


RoHS

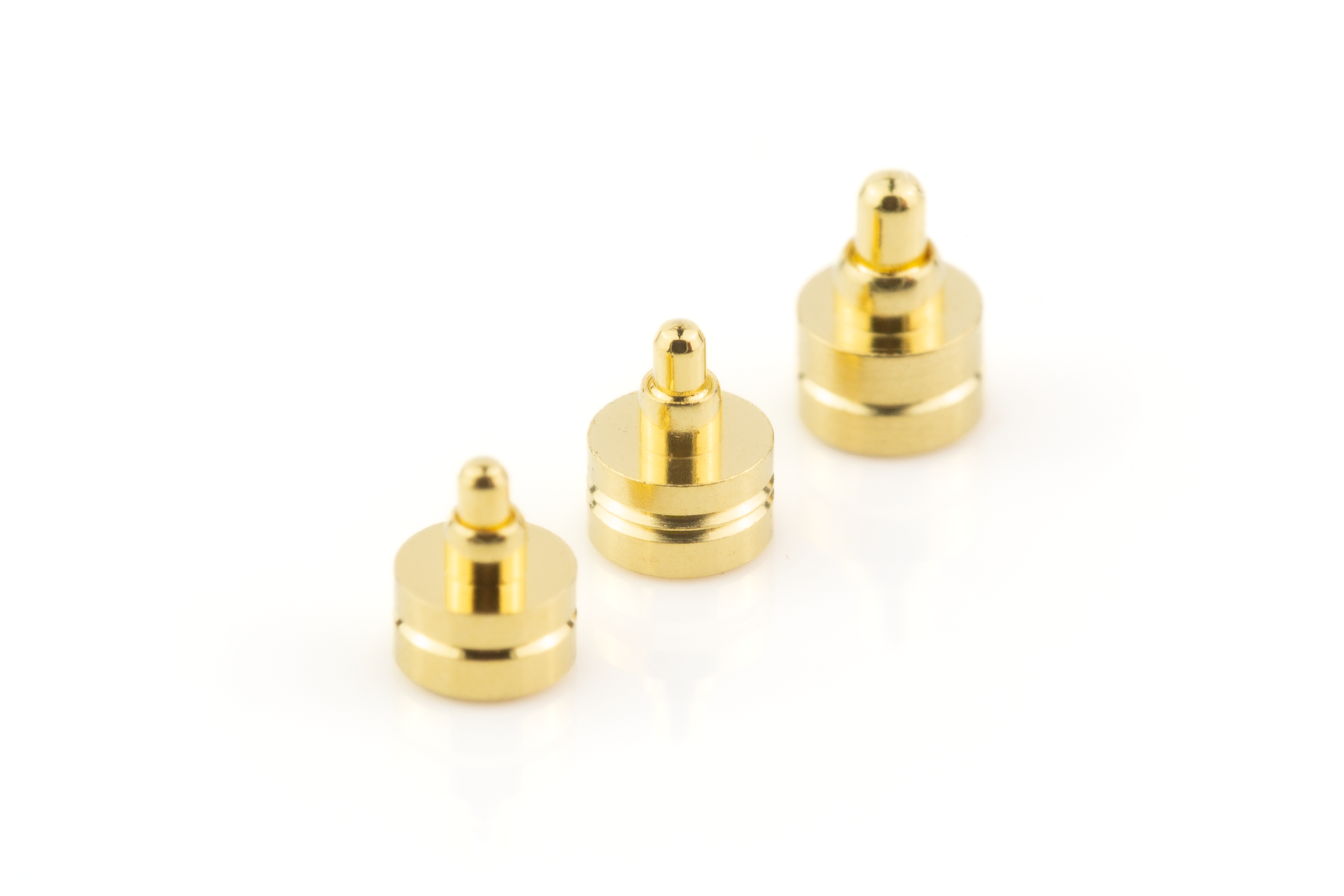

J-2109PU-1-00-0000Product image

Pogo Pin Connectors_1Pin_SMD Vertical Series

J-2109PU-1-00-0000

TechnologyN/AA2.1
B0.9C1.4
D2.4E0.6
Working Height2.4 mmWorking Range(Reference)2.2〜2.55 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.6 N
Rated Current0.5ARated VoltageAC/DC 12V
Contact Resistance250mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPW/OPackagingTape&Reel
Packaging Quantity2,500pcs
Note

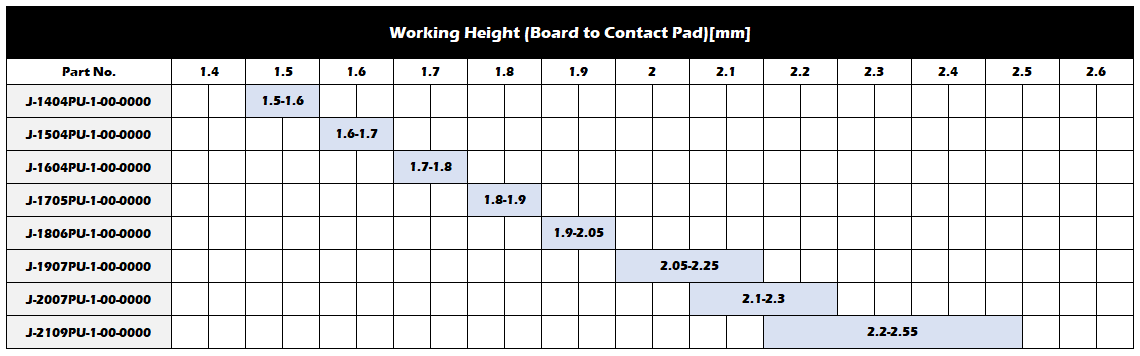

Working Range(Reference)

Working Range(Reference)
