J-2007PU-1-00-0000

SPRING CONNECTOR™/Pogo Pins


RoHS

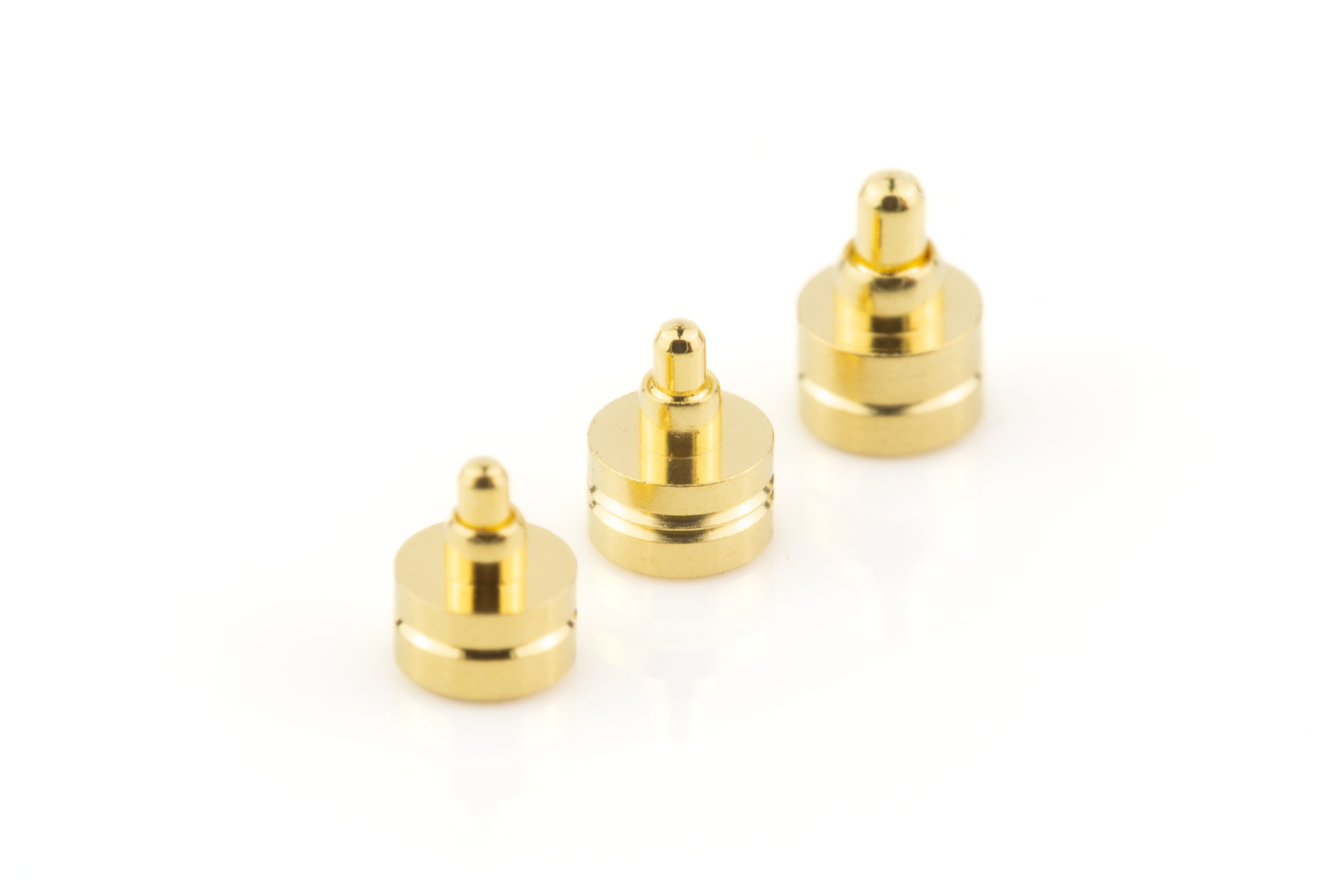

J-2007PU-1-00-0000Product image

Pogo Pin Connectors_1Pin_SMD Vertical Series

J-2007PU-1-00-0000

TechnologyN/AA2
B0.65C1.3
D2.15E0.5
Working Height2.15 mmWorking Range(Reference)2.1〜2.3 mm
Plug/Rece(Male/Female)MaleRowSingle
BossW/ONumber of Pins1
PitchOtherSpring Force0.6 N
Rated Current0.5ARated VoltageAC/DC 12V
Contact Resistance250mΩOperation Temp Range-40℃〜+85℃
Cycle Durability20,000 timesSoldering MethodSMD_Vertical
CAPW/OPackagingTape&Reel
Packaging Quantity2,500pcs
Note

Shape to be used only as a reference and may be subject to change.

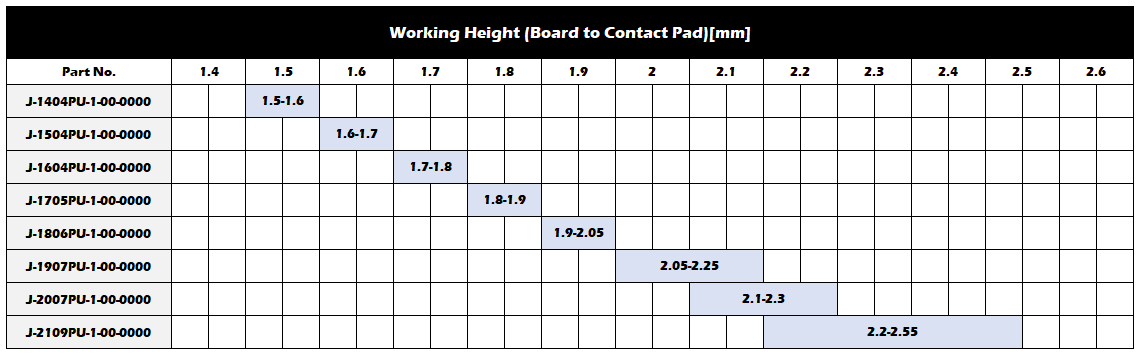

Working Range(Reference)

Working Range(Reference)
