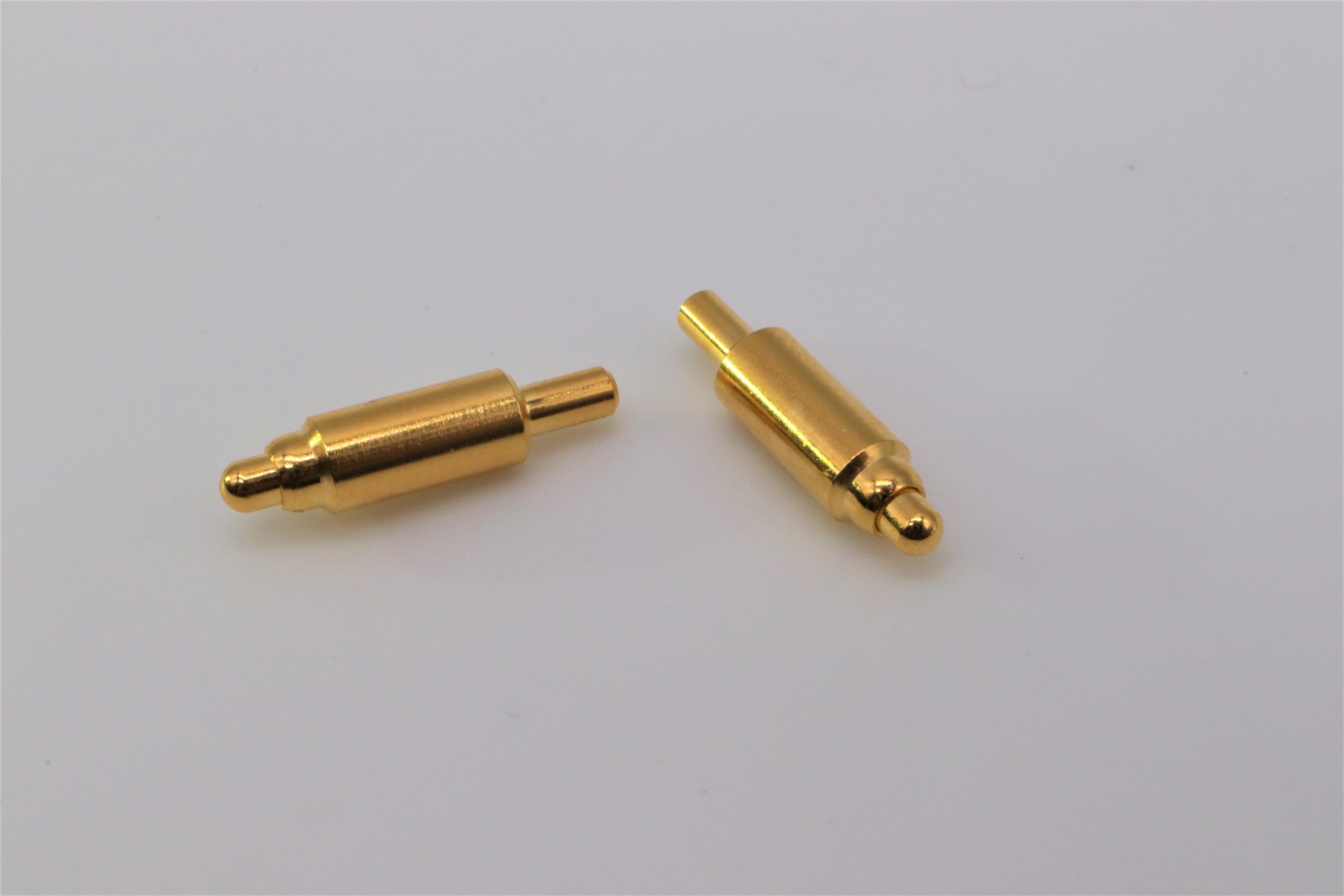

New Product Release "15A Spring Connector"

Yokowo has developed a 15A spring connector that will be included in our catalog line-up in response to the needs of the market.

■ Market Trend
Higher demand for a higher current connector and a growing demand for connectors in the industrial market. Yokowo has developed a new connector with key features in mind; "space-saving", "simple mating and removal structure", and most importantly "higher current".



Concept
- Space-saving mounting
- Simple mating and removal structure
- Throught hole type for your initial evaluation
- High design flexibility

Dimension
- Through hole diameter/length: 2.0mm/4.0mm
- Overall length :15.6mm

Basic spec
ITEM SPEC Condition
Rated Current 15 amp Temp rise ⊿30℃ after testing
Contact resistance 30m Ohm max (initial)
Operating Temp. -40 ~ 85 ℃
Cycle durability 20,000 times Max







Mar, 2020
